Engine Performance
>>
Fuel Delivery
>>
Fuel Delivery System
>>
Injector
>>
Components & Components Location
>>
Components Location
>>
High Pressure Delivery Pipe
High Pressure Delivery Pipe

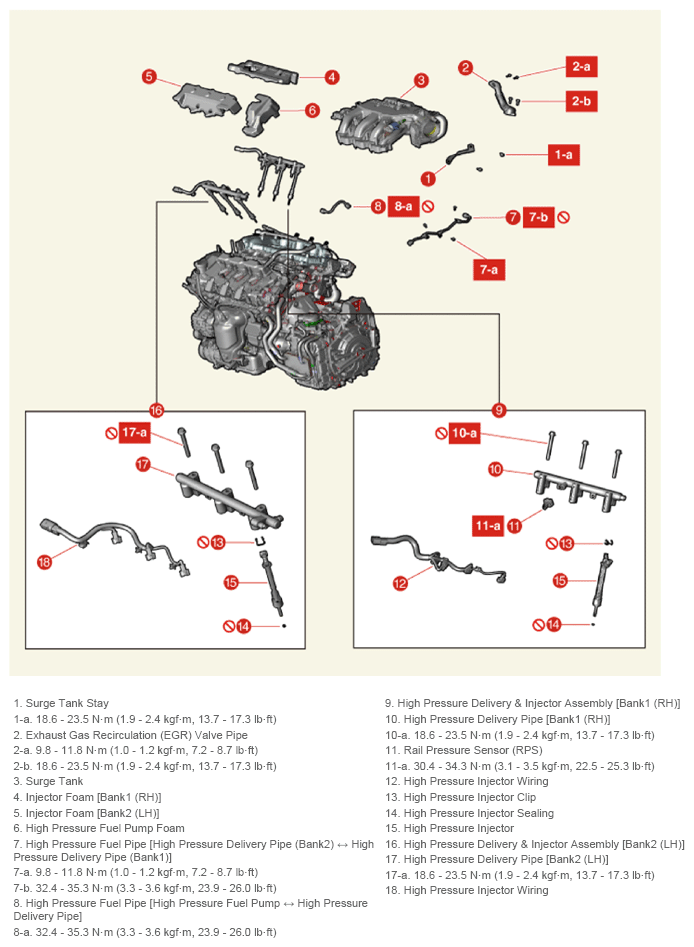

Fig 1: Injector Components Location With Torque Specification (High Pressure Delivery Pipe)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
