High Pressure Fuel Pump: Installation

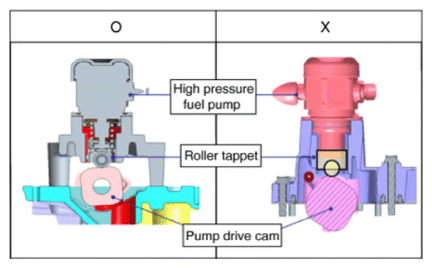

After checking the pump drive cam position, place the cam position to BDC (Bottom Dead Center) by turning the damper pulley in the direction of clockwise.
NOTE:
If the oil pump is installed in a position other than the BDC, the following problems may occur.
- O-rings may be damaged due to incomplete tightening.
- High pressure fuel pump piston tightening bolt thread may be damaged.
Courtesy of KIA MOTORS AMERICA, INC.

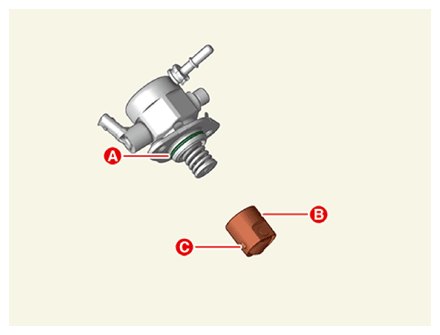

Apply engine oil to the O-ring (A), roller tappet (B), protrusion (C) and mounting groove of the high pressure fuel pump.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The O-ring should be replaced with a new one.

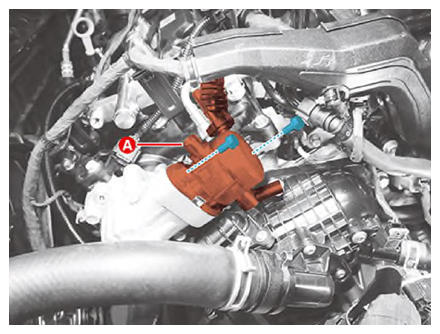

After installing the high pressure fuel pump (A) and the roller tappet, tighten the bolts by hand.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When tightening the installation bolts of the high pressure fuel pump, pre-tighten the bolts by hand, and then fully tighten in turns in small steps (0.5 turns).
- Do not reuse the bolts.
Tighten the high pressure fuel pump bolts with specified torque.
Tightening torque:

12.8 - 14.7 N.m (1.3 - 1.5 kgf.m, 9.4 - 10.8 lb.ft)

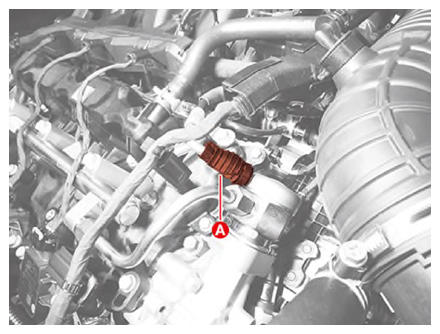

Connect the fuel pressure control valve connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Install the high pressure fuel pipe [High Pressure Fuel Pump ↔ High Pressure Delivery Pipe].
(Refer to Engine Control/Fuel System - "FUEL LINE ")

NOTE: The high pressure fuel pipe should be replaced with a new one.

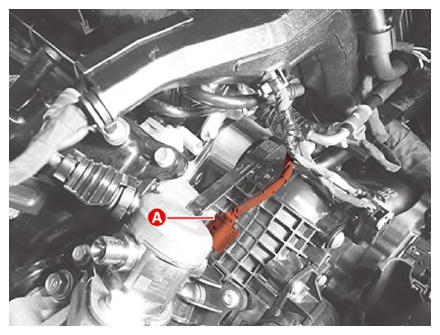

Connect the low pressure fuel tube quick-connector (A) to high pressure fuel pump and close the clamp cover.

Courtesy of KIA MOTORS AMERICA, INC.

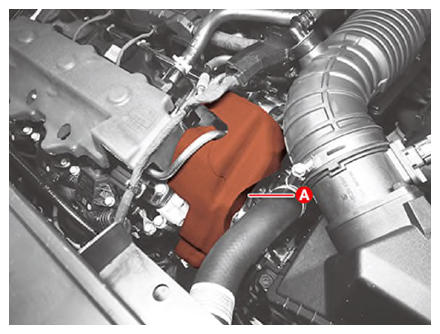

Install the high pressure fuel pump foam (A).

Courtesy of KIA MOTORS AMERICA, INC.
Connect the battery negative (-) terminal.
Check for the fuel leakage after installation.
