Removal & Installation: Installation

  1. Install in the reverse order of removal.

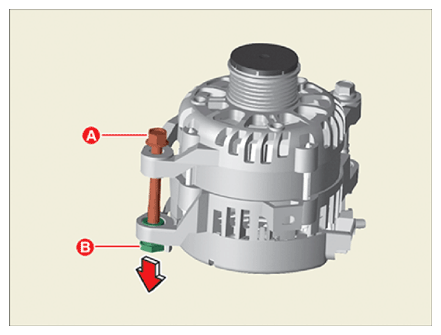

NOTE: Before installing the alternator, move the draft boot (B) by hitting alternator mounting bolt (A) by using the plastic hammer.
G14796993Courtesy of KIA MOTORS AMERICA, INC.
