Disassembly & Reassembly: Disassembly

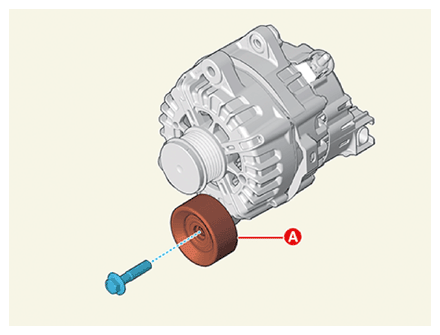

Remove the drive belt pulley (A) after removing the bolt.

Courtesy of KIA MOTORS AMERICA, INC.

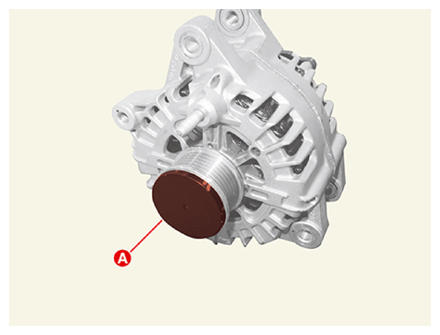

Remove the Overrunning Alternator Pulley (OAP) cap (A).

Courtesy of KIA MOTORS AMERICA, INC.

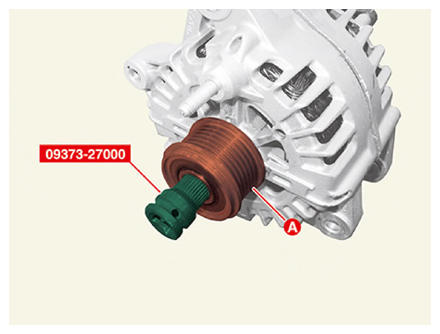

Remove the pulley (A) by using the SST (09373 - 27000).
Tightening torque:

75.5 - 81.4 N.m (7.7 - 8.3 kgf.m, 55.7 - 60.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

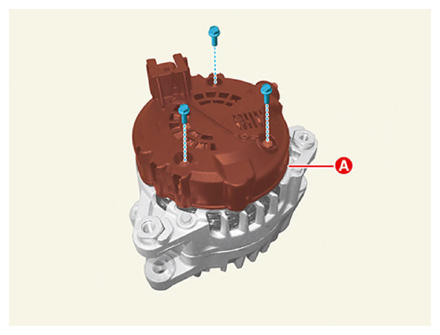

Remove the rear cover (A) after removing the bolts.
Tightening torque:

3.04 - 4.41 N.m (0.31 - 0.45 kgf.m, 2.24 - 3.25 lb.ft, 26.9 - 39.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

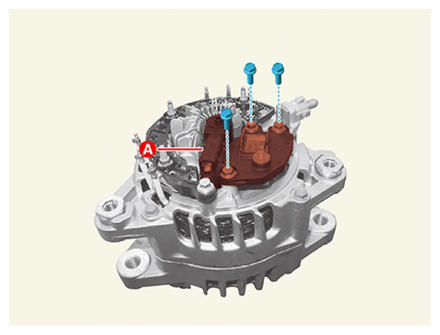

Remove the brush & regulator assembly (A) after removing the mounting bolts.
Tightening torque:

4.02 - 4.41 N.m (0.41 - 0.45 kgf.m, 2.97 - 3.25 lb.ft, 35.6 - 39.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

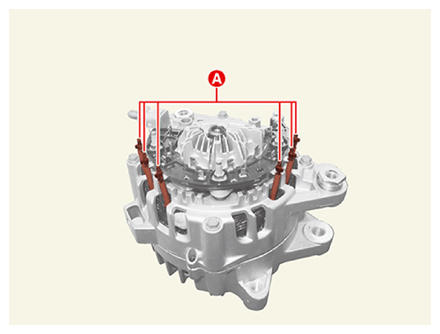

Dissolve the stator leads (A) by using the solder.

Courtesy of KIA MOTORS AMERICA, INC.

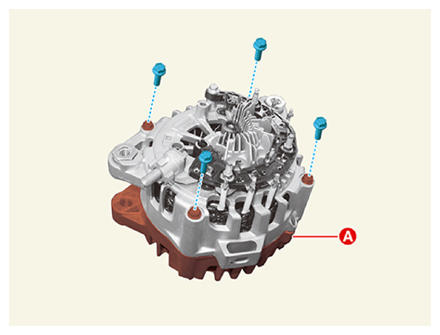

Remove the front bracket (A) after removing the mounting bolts.
Tightening torque:

4.51 - 5.49 N.m (0.46 - 0.56 kgf.m, 3.33 - 4.05 lb.ft, 40.0 - 48.6 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

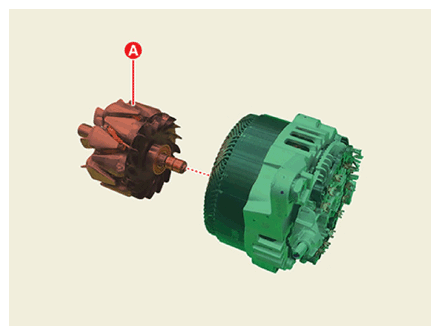

Remove the rotor assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

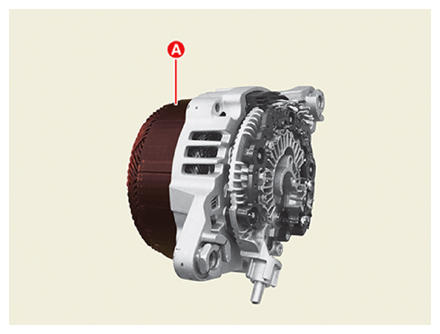

Remove the stator (A) from the rear bracket assembly.

Courtesy of KIA MOTORS AMERICA, INC.
