Power Window Sub Switch

  1. Disconnect the battery negative (-) terminal.
  2. Remove the passenger side front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

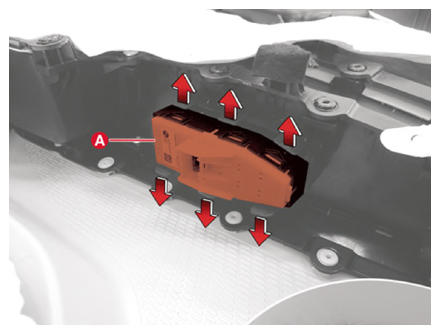

  3. Remove the power window sub switch (A) by pushing the holders in the direction of arrow.
G14806481Courtesy of KIA MOTORS AMERICA, INC.
G14806482Courtesy of KIA MOTORS AMERICA, INC.
