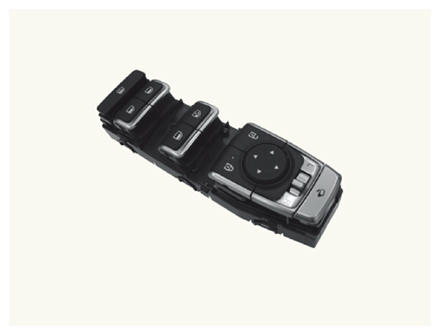

Power Window Main Switch

  1. Disconnect the battery negative (-) terminal.
  2. Remove the driver side front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

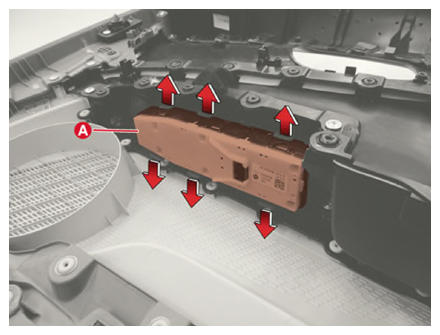

  3. Remove the power window main switch (A) by pushing the holders in the direction of arrow.
G14806479Courtesy of KIA MOTORS AMERICA, INC.
G14806480Courtesy of KIA MOTORS AMERICA, INC.
