Removal & Installation: Installation

  1. Install in the reverse order of removal.
NOTE:

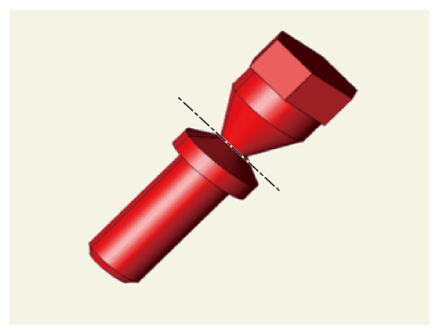

  • The shear bolts must be replaced with a new one. (Do not reuse it.)
  • Tighten the shear bolts until its head is cut off.
G14806224Courtesy of KIA MOTORS AMERICA, INC.
