Removal & Installation: Removal: Buzzer

  1. Disconnect the battery negative (-) terminal.
  2. Remove the front bumper.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

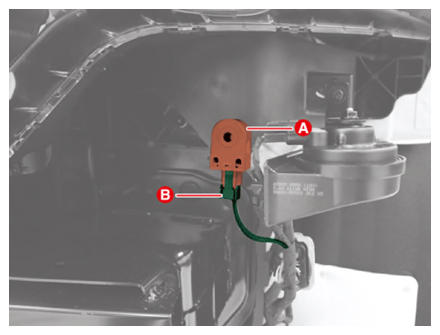

  3. Remove the buzzer (A) after disconnecting the connector (B).
    G14806651Courtesy of KIA MOTORS AMERICA, INC.
