Removal & Installation: Removal
NOTE:
- If DTC code B24B000 exists, perform power tailgate mode change.
(Refer to Power Tailgate Module - "ADJUSTMENT ")
- If PTGM is exchanged with a new one, perform the initialization process.
(Refer to Power Tailgate Module - "ADJUSTMENT ")
- Before delivery to customer, operate the power tailgate to be sure that there is no warning sound.
- Disconnect the battery negative (-) terminal.
- Remove the luggage side trim [RH].
(Refer to Body - "LUGGAGE SIDE TRIM ")

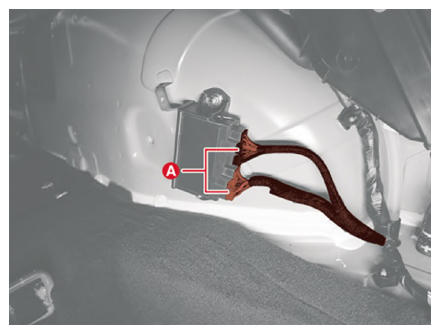

- Disconnect the power tailgate module connectors (A).

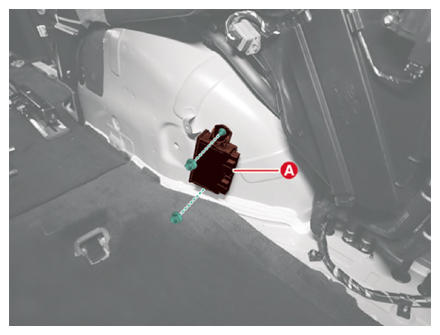

- Remove the power tailgate module (A) by removing the nuts.
