Mode Change (Power Tailgate System)

After replacing with a new power tailgate module, check for DTC code at all times.
If DTC code B24B000 exists, perform power tailgate mode change.

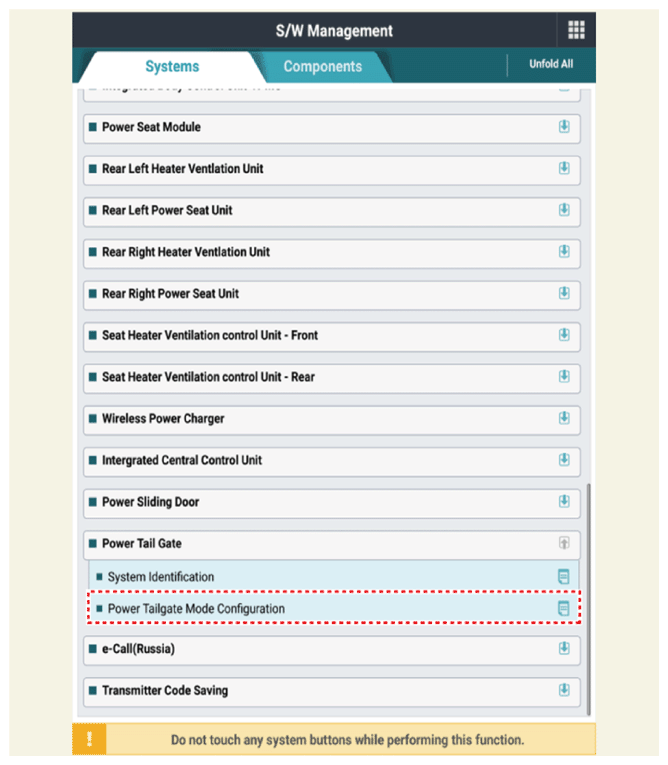

After connecting the KDS, select the "Power Tailgate Mode Change" procedure.

Courtesy of KIA MOTORS AMERICA, INC.

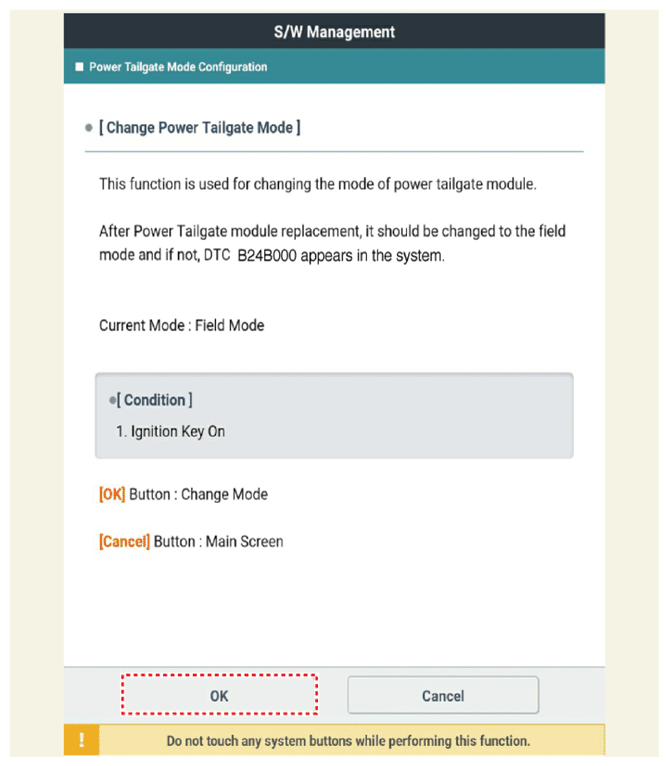

Perform the tailgate mode change procedure according to displayed messages on KDS.

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION:

If power tailgate system is operated with factory mode, it makes the abnormal warning sound.
