Repair Procedures: Installation
- Install in the reverse order of removal.
Ignition coil mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
NOTE:
- Install the ignition coil with the specified torque.
- If ignition coil is dropped, it may cause internal damage. Do not use it.

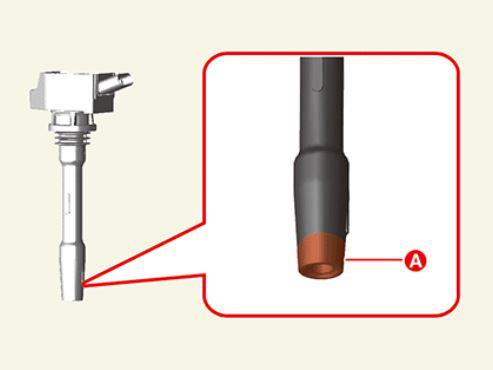

- When assembling the parts, clean the contaminated area (A).
- The cloth should be clean, free of contaminants, and soft enough to not damage the parts.
(When replacing ignition coil and spark plug together, cleaning is not required.)
