Tailgate Lid Handle

  1. Remove the tailgate garnish.

    (Refer to Body - "TAILGATE GARNISH ")

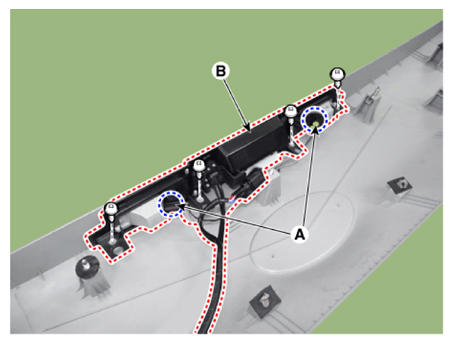

  2. After removing the license lamp sockets (A), remove the liftgate lid handle (B) by loosening the screws.
    G13312523Courtesy of KIA MOTORS AMERICA, INC.
