Repair Procedures: Installation

NOTE:

Ensure front camera windshield area is clean from any debris or contaminants prior to reinstalling front camera.
Fully install it so that you can hear a "click" sound when assembling it.

Install in the reverse order of removal.

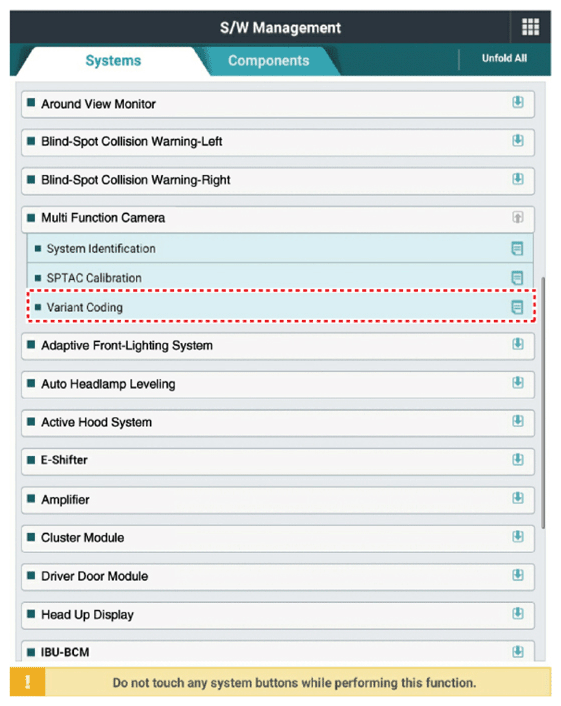

When if replacing the front view camera with a new one, perform the "Variant Coding" procedure by using the KDS.

Courtesy of KIA MOTORS AMERICA, INC.
Perform the front view camera unit calibration.
(Refer to Front View Camera Unit - "ADJUSTMENT ")
