Repair Procedures: Replacement
CAUTION:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

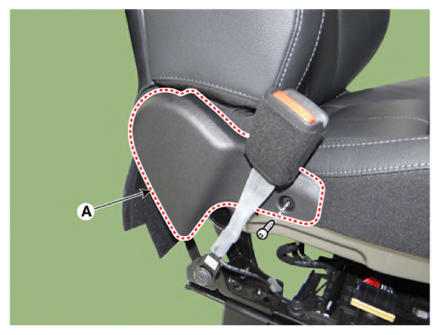

- After loosening the mounting screw, remove the front seat shield inner cover (A).
- To install, reverse removal procedure.
Information
Replace any damaged clips.
