Power Tailgate Inner Switch
- Remove the power tailgate inner switch.
(Refer to Power Tailgate Switch - "REMOVAL ")

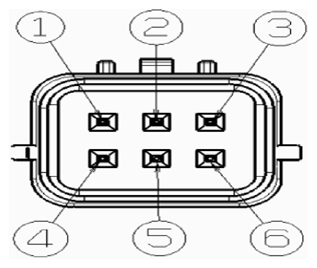

- Check for continuity between the terminal 4 and terminal 6.
| Pin | Function |
|---|---|
| 1 | Illumination (+) |
| 2 | - |
| 3 | Illumination (-) |
| 4 | Power tailgate signal |
| 5 | - |
| 6 | Ground |
