Console Storage Box

  1. Remove the floor console assembly.

    (Refer to Body -"FLOOR CONSOLE ASSEMBLY ")

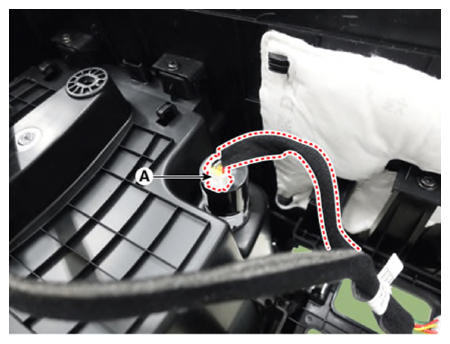

  2. Disconnect the connector (A) from the USB charger.
    G13312026Courtesy of KIA MOTORS AMERICA, INC.

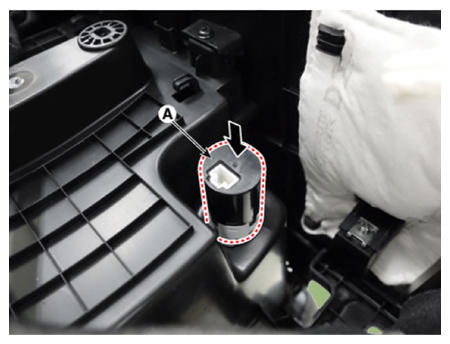

  3. Remove the USB charger (A) by pushing it in the direction of arrow.
    G13312027Courtesy of KIA MOTORS AMERICA, INC.
