MDPS Tuning Data Setting Procedure

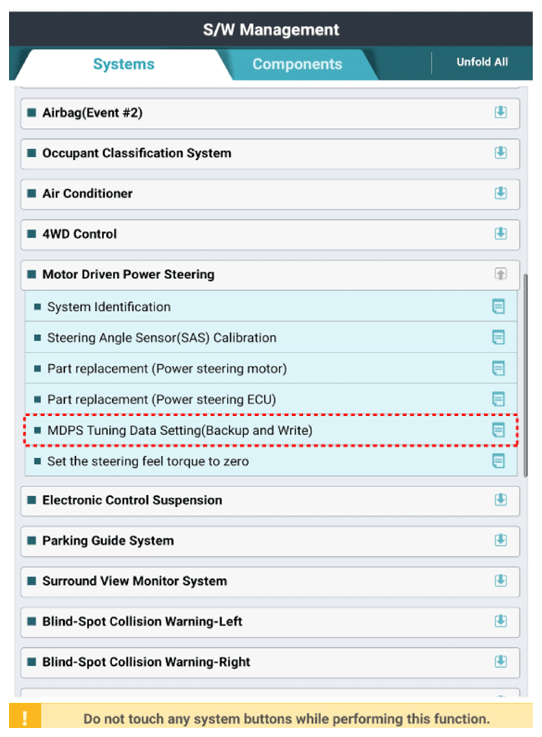

  1. Select "MDPS Tuning Data Setting (Backup and Write)"
  2. Proceed with the test according to the screen instructions.
    G14996808Courtesy of KIA MOTORS AMERICA, INC.

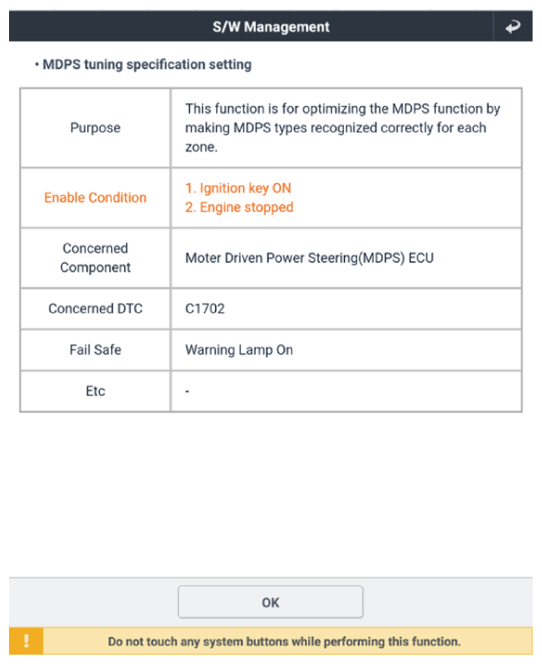

    G14996809Courtesy of KIA MOTORS AMERICA, INC.

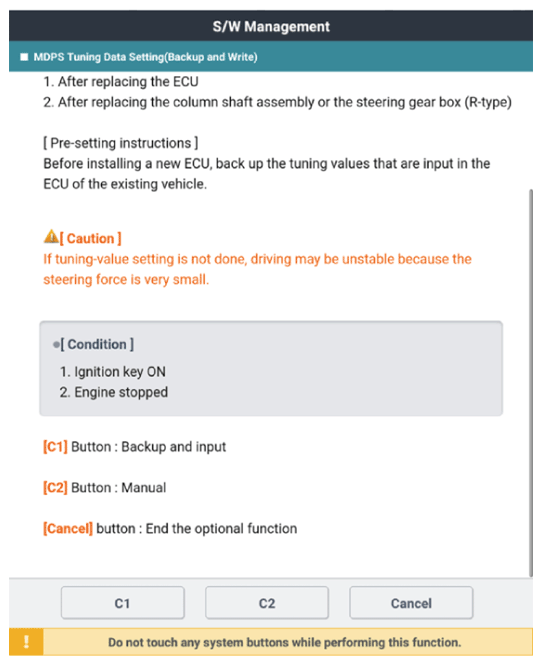

  3. Select "C2" Manual Button.
G14996810Courtesy of KIA MOTORS AMERICA, INC.
G14996811Courtesy of KIA MOTORS AMERICA, INC.

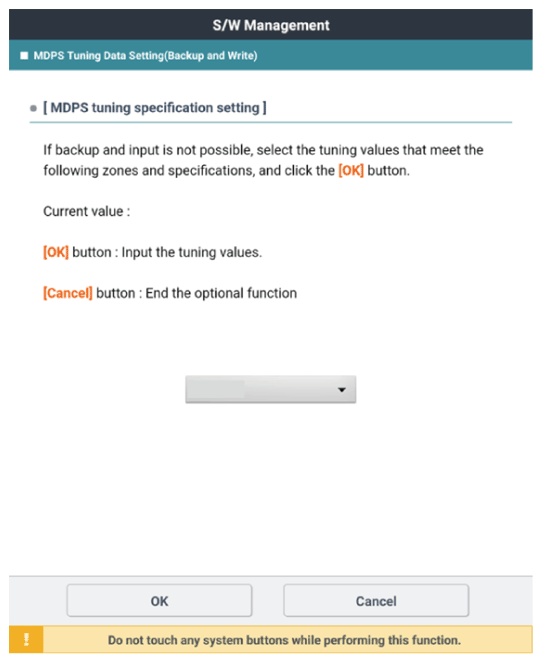

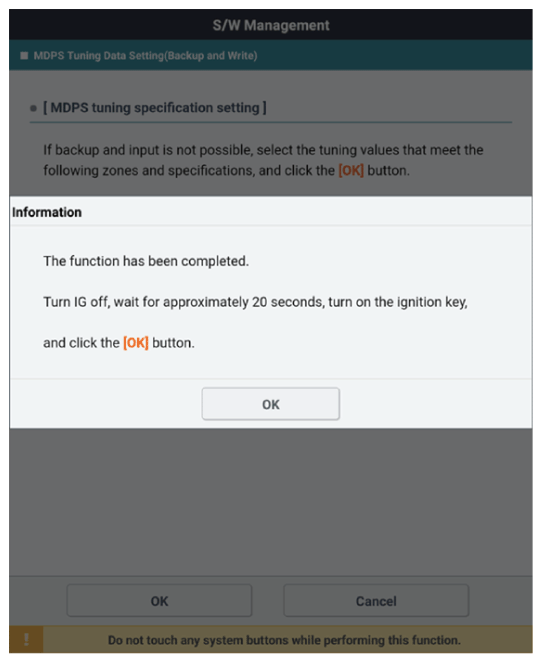

G14996812Courtesy of KIA MOTORS AMERICA, INC.
