Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

The type can replace the wheel side joint boot

CAUTION:
  • When assembling, be careful not to let dust and foreign substances enter.
  • Driveshaft joints require special grease, so do not add any other type of grease.
  • Boot bands must use the new one.

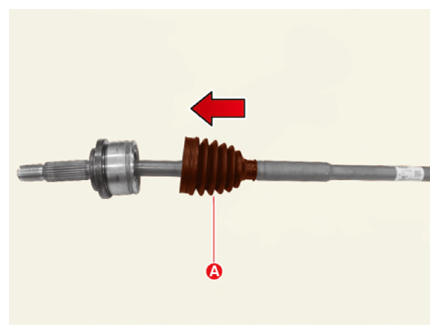

  1. Install the new boot (A) in the direction of the arrow.
    G14996491Courtesy of KIA MOTORS AMERICA, INC.

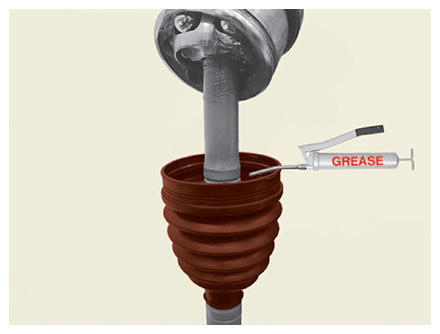

  2. Apply the grease specified inside the boot.
    G14996492Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Use the grease provided with the joint/boot kit.
    • Apply about 50 - 60% grease inside the boot.
    • Driveshaft joints require special grease, so do not add any other type of grease.

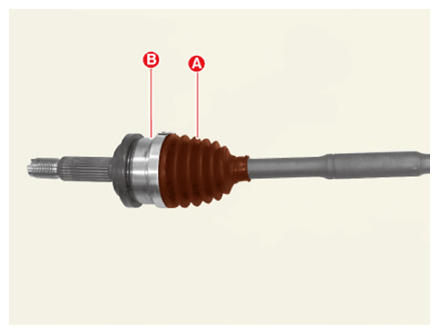

  3. Install the wheel side boot (A) into the housing (B).
    G14996493Courtesy of KIA MOTORS AMERICA, INC.

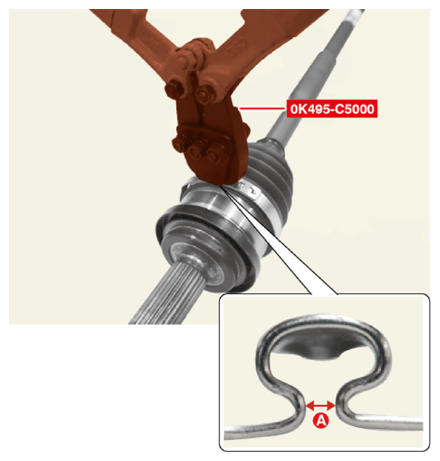

  4. Install the large diameter boot band using SST (0K495-C5000).

    Clearance (A):  2.0 mm (0.078 in.) or less.

    G14996494Courtesy of KIA MOTORS AMERICA, INC.

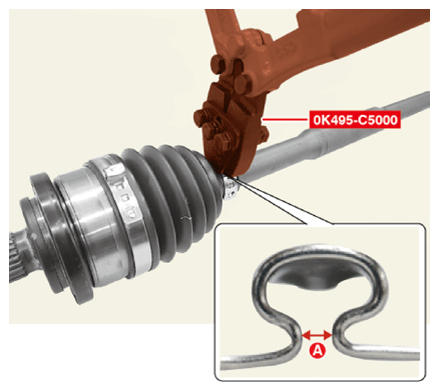

  5. Install the small diameter boot band using SST (0K495-C5000).

    Clearance (A):  2.0 mm (0.078 in.) or less.

    G14996495Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When installing the boot band, align the fastened direction with the wheel side joint large diameter boot band.
    G14996496Courtesy of KIA MOTORS AMERICA, INC.
  6. Install the dynamic damper. [If equipped]

    (Refer to Driveshaft Assembly - "DYNAMIC DAMPER ")

  7. Install the transaxle side joint.

    (Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")

  8. Install the front drive shaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

The type can not replace the wheel side joint boot

CAUTION:
  • When assembling, be careful not to let dust and foreign substances enter.
  • Driveshaft joints require special grease, so do not add any other type of grease.
  • Boot bands must use the new one.

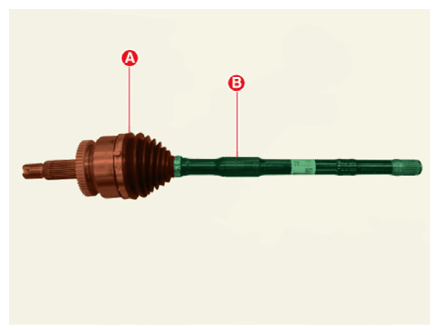

  1. Replace the wheel side joint assembly (A) and shaft (B).
    G14996497Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: The wheel side joint boot can not be replaced, so replace the wheel side joint assembly (A) and shaft (B) together as an assembly.
  2. Install the Dynamic damper. [If equipped]

    (Refer to Driveshaft Assembly - "DYNAMIC DAMPER ")

  3. Install the transaxle side joint.

    (Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")

  4. Install the front drive shaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
