Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • When assembling, be careful not to let dust and foreign substances enter.
  • Driveshaft joints require special grease, so do not add any other type of grease.
  • Boot bands must use the new one.

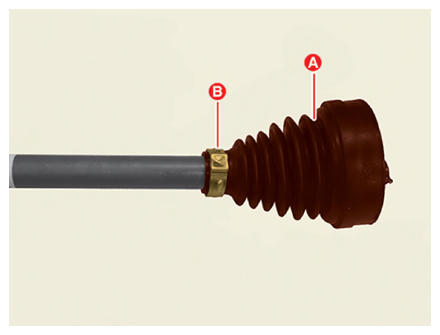

  1. Install the transaxle side boot (A) and boot band (B) on the driveshaft.
    G14996458Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Put the boot band (B) first on the drive shaft before installing the boot (A).

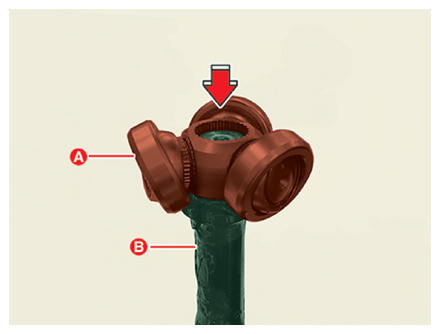

  2. Install the spider assembly (A) on the shaft (B), then press it using a mallet.
    G14996459Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    G14996460Courtesy of KIA MOTORS AMERICA, INC.

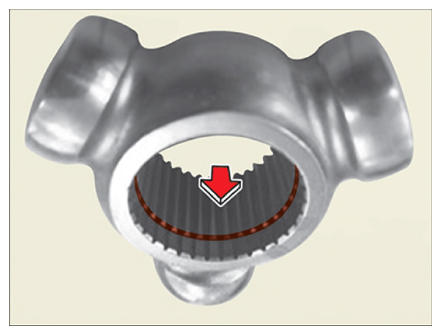

    • When installing the spider assembly (A), install it in the correct direction.
    • Installing in the wrong direction can cause secondary quality problems.

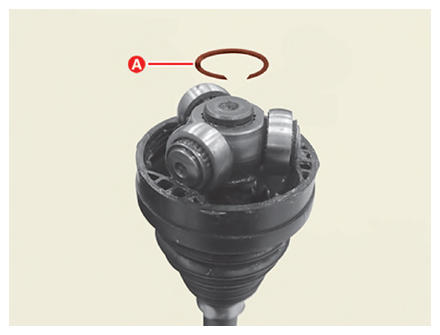

  3. Install the snap ring (A) using the snap ring pliers.
    G14996461Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When replacing the joint assembly, use the new one provided in the joint kit.
    • The snap ring must be new.

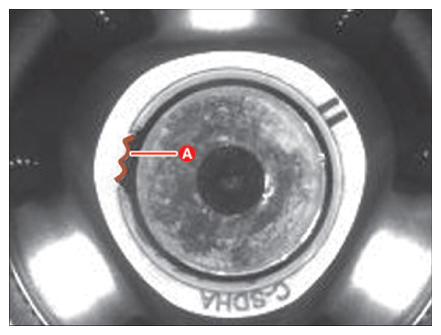

    • After installing the snap ring, make sure that there are only 2 - 3 splines in position (A).
    G14996462Courtesy of KIA MOTORS AMERICA, INC.

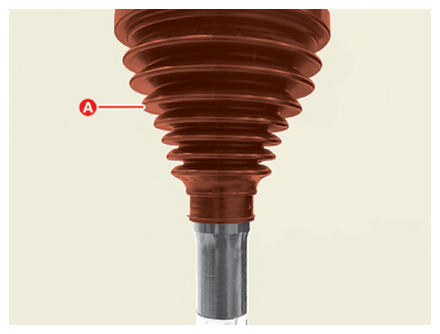

  4. Install the transaxle side joint boot (A) in the correct position.
    G14996463Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

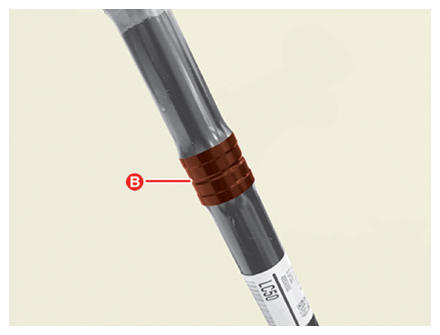

    • When installing boot (A), make sure the boot fits into the groove (B).
      G14996464Courtesy of KIA MOTORS AMERICA, INC.

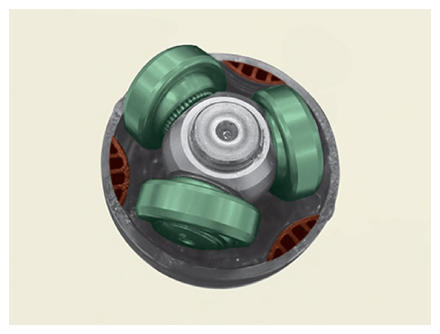

    • When installing the spider assembly, fit the assembly to the boot shape.
    G14996465Courtesy of KIA MOTORS AMERICA, INC.

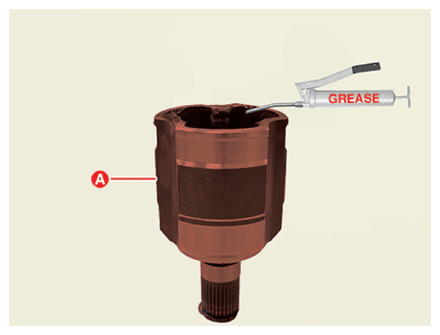

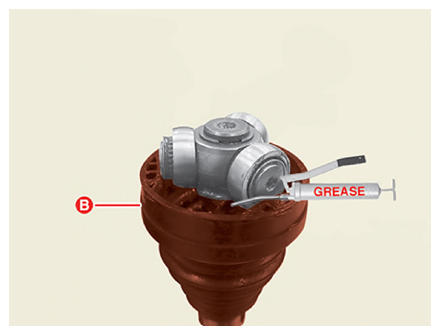

  5. Apply specified grease inside the joint housing (A) and boot (B).
    G14996466Courtesy of KIA MOTORS AMERICA, INC.
    G14996467Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Use the grease provided with the joint/boot kit.
    • Apply about 70% grease to the housing (A) and about 30% grease to the boot (B).
    • Driveshaft joints require special grease, so do not add any other type of grease.

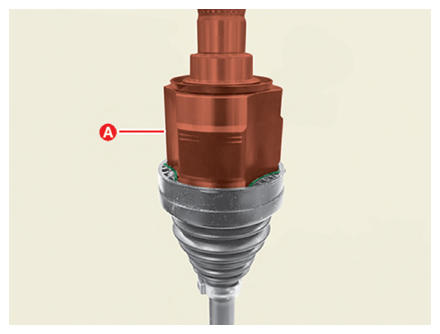

  6. Install the trans axle side joint housing (A).
    G14996468Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When installing the housing, turn the boot to fit each other.
    • If the shape of housing and boot does not fit, there is a possibility of leakage due to the gap. Be very careful.
  7. Adjust the air inside the boot to normal as shown below.
    Normal Lack of air Too much air
    G14996469Courtesy of KIA MOTORS AMERICA, INC.
    G14996470Courtesy of KIA MOTORS AMERICA, INC.
    G14996471Courtesy of KIA MOTORS AMERICA, INC.

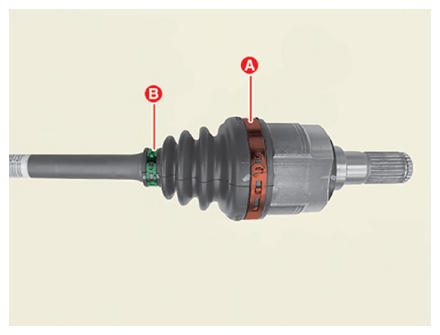

  8. Install the transaxle side joint large diameter (A) and small diameter (B) boot band.
    G14996472Courtesy of KIA MOTORS AMERICA, INC.

    Information

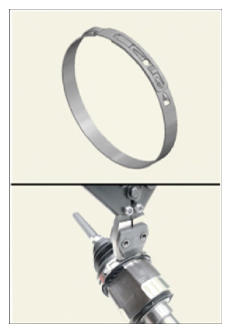

    Use the right tool for each type of boot band as shown in the table below.

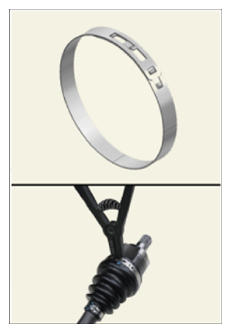

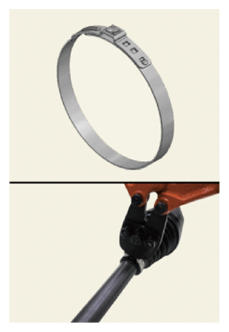

    Ear type Hook type Hook type
    [Low profile]
    SST (0K495-C5000) SST (09495-39100) SST (0K495-2W000)
    G14996473Courtesy of KIA MOTORS AMERICA, INC.
    G14996474Courtesy of KIA MOTORS AMERICA, INC.
    G14996475Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Install in the following order: large diameter boot band (A) → small diameter boot band (B).
    • Installing in the wrong order can cause leaks.
    • When installing the boot band, align the fastened direction with the wheel side joint boot band.
      G14996476Courtesy of KIA MOTORS AMERICA, INC.

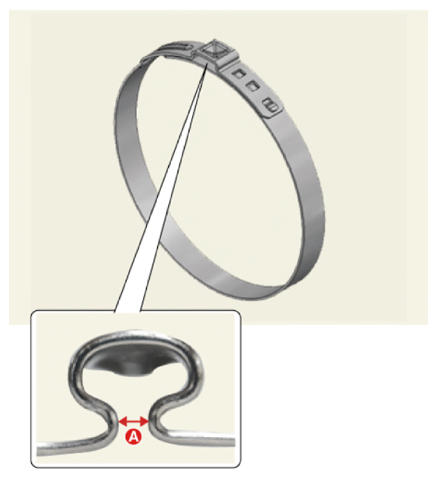

    • When installing the ear type boot band, check the clearance (A) as shown below.

      Clearance (A):  2.0 mm (0.078 in.) (0.078 in.) or less.

      G14996477Courtesy of KIA MOTORS AMERICA, INC.

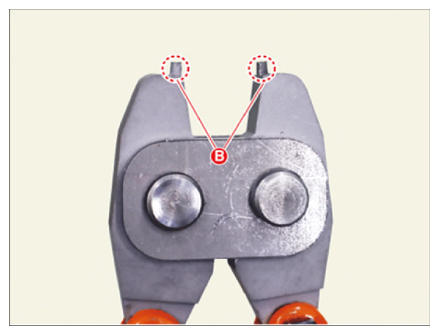

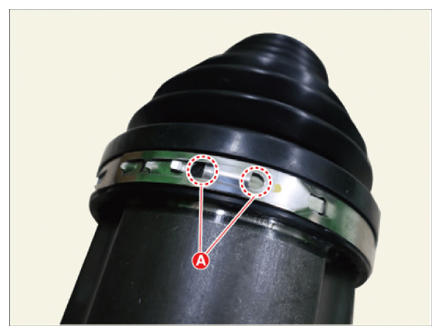

    • When using the low profile hook type boot band, fit the SST tip (B) into the boot band hole (A) as shown below.
    G14996478Courtesy of KIA MOTORS AMERICA, INC.
    G14996479Courtesy of KIA MOTORS AMERICA, INC.
  9. Install the front drive shaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
