Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front drive shaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the transaxle side joint.

    (Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")

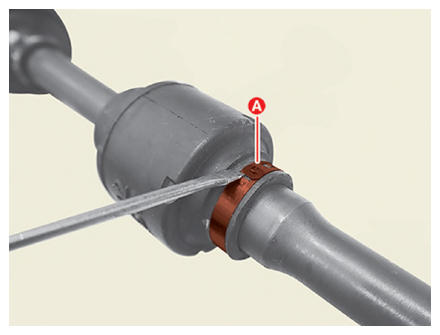

  3. Remove the dynamic damper band (A) using driver (-).
    G14996480Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When removing the dynamic damper, lubricate the shaft with soapy water to prevent shaft damage.

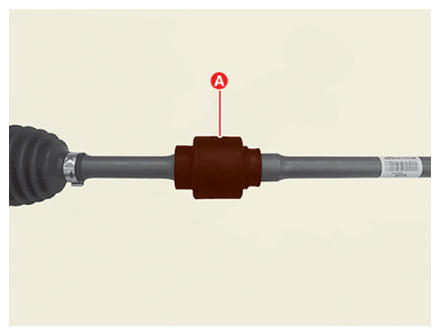

  4. Remove the dynamic damper (A).
G14996481Courtesy of KIA MOTORS AMERICA, INC.
