Engine Electrical System - General Information - 2.5L
>>
Specifications
>>
Charging System
>>
Alternator

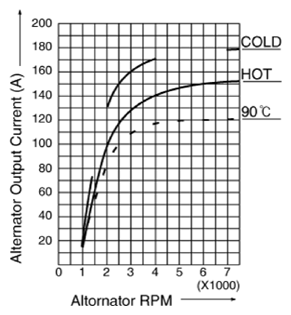

Charging System: Alternator
Item
Specification
Type
IC Regulator built-in type
Rated Voltage (V, A)
13.5, 150
Speed in use (RPM)
1, 000 - 18, 000
Number of pins
1
