Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Disconnect the battery negative (-) terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

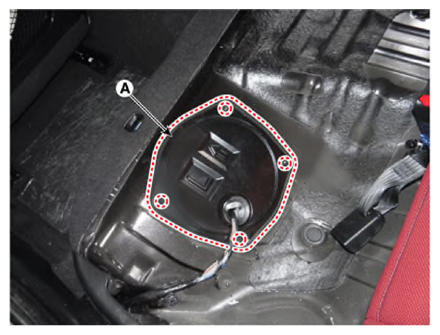

  4. Remove the fuel pump service cover (A) after removing the mounting screws.
    G14990936Courtesy of KIA MOTORS AMERICA, INC.

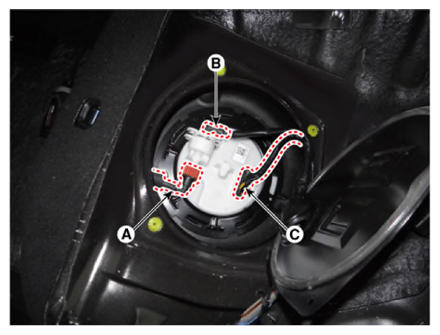

  5. Disconnect the connectors (A, B, C) from the fuel pump.
    1. Fuel feed tube quick-connector
    2. Fuel tank pressure sensor connector
    3. Fuel pump connector
    G14990937Courtesy of KIA MOTORS AMERICA, INC.

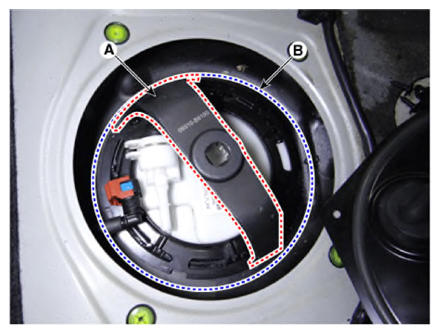

  6. Remove the fuel pump locking ring (B) by using a SST (09310-B8100) (A).
    G14990938Courtesy of KIA MOTORS AMERICA, INC.

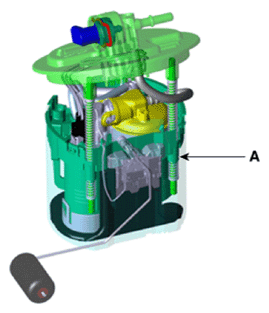

  7. Remove the fuel pump (A).
G14990939Courtesy of KIA MOTORS AMERICA, INC.
