Repair Procedures: Installation

Low Pressure Fuel Line [Extension Fuel Line ↔ Low Pressure Delivery Pipe]

1. Install in the reverse order of removal.
2. Inspect the leakage the fuel after installation.

Low Pressure Fuel Line [Extension Fuel Line ↔ Fuel Tank]

1. Install in the reverse order of removal.
2. Inspect the leakage the fuel after installation.

Low Pressure Fuel Line [Low Pressure Delivery Pipe ↔ High Pressure Fuel Pump]

1. Install in the reverse order of removal.
2. Inspect the leakage the fuel after installation.

High Pressure Fuel Line [High Pressure Fuel Pump ↔ High Pressure Delivery Pipe]

1. Install in the reverse order of removal.
   NOTE:

   • The existing high pressure fuel pipe must be replaced with a new one (do not reuse it).
   • Install the high pressure fuel pipe as following orders below.

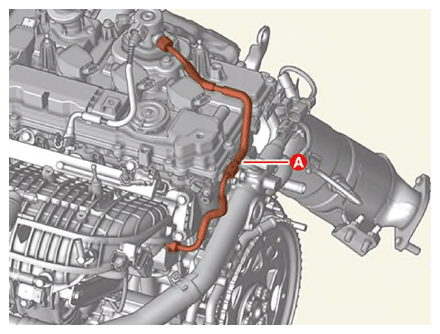

   1. Tighten the flange nut (A) by hand

      Courtesy of KIA MOTORS AMERICA, INC.

      Courtesy of KIA MOTORS AMERICA, INC.

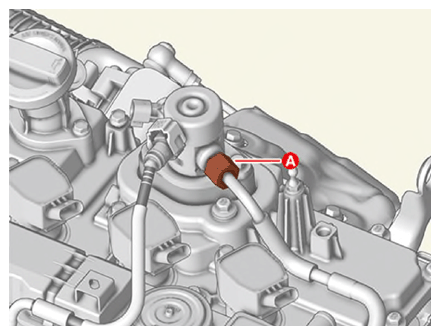

   2. Tighten the function block mounting bolt with specified torque.

      Tightening torque:

      9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

      Courtesy of KIA MOTORS AMERICA, INC.

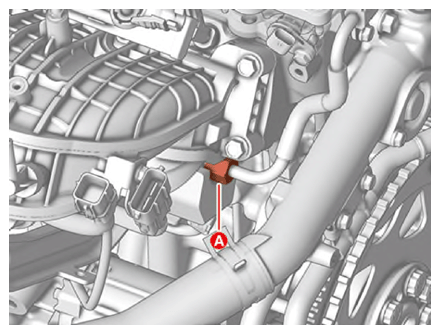

   3. Tighten the flange nut (A) with specified torque.

      Tightening torque:

      32.4 - 35.3 N.m (3.3 - 3.6 kgf.m, 23.9 - 26.0 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

2. Inspect the leakage the fuel after installation.
