Repair Procedures: Removal

Disconnect the battery negative (-) terminal.

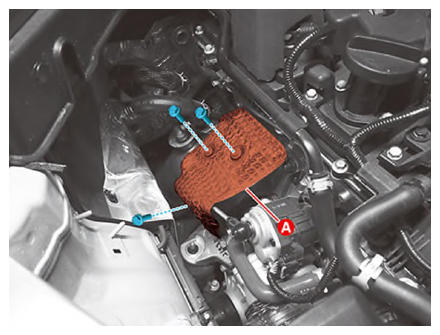

Remove the heat protector (A) after removing the bolts.
Tightening Torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

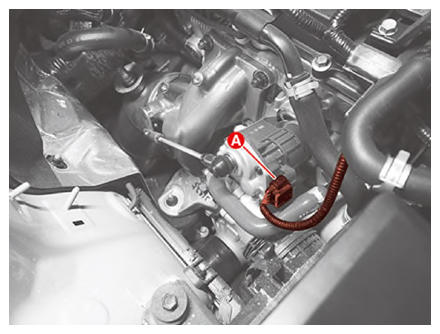

Disconnect the Electric Waste Gate Actuator (EWGA) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

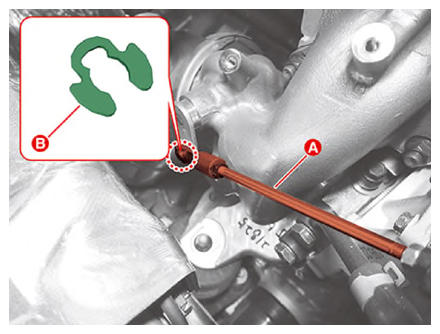

Remove the retaining ring (B) from the EWGA rod (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to lose the retaining ring when removing it.

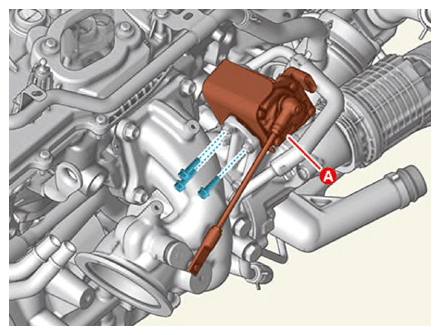

Removing the EWGA (A) after removing the bolts.
Tightening torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
