Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the luggage side trim.

    (Refer to Body - "LUGGAGE SIDE TRIM ")

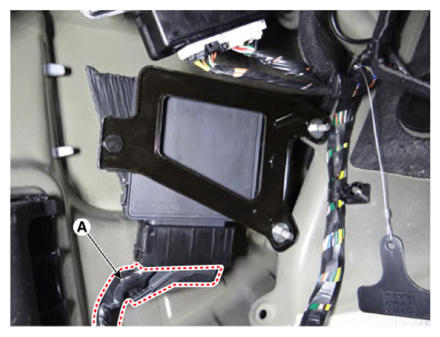

  3. Disconnect the ECS control unit connector (A).
    G14996565Courtesy of KIA MOTORS AMERICA, INC.

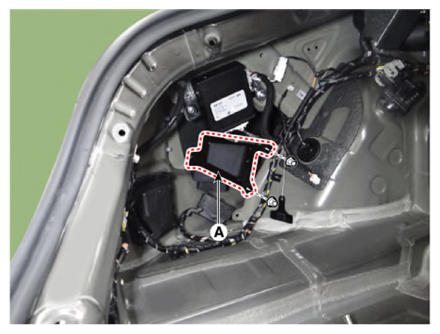

  4. Loosen the ECS control unit bracket nut and then remove the ECS control unit (A).
G14996566Courtesy of KIA MOTORS AMERICA, INC.
