System Inspection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4

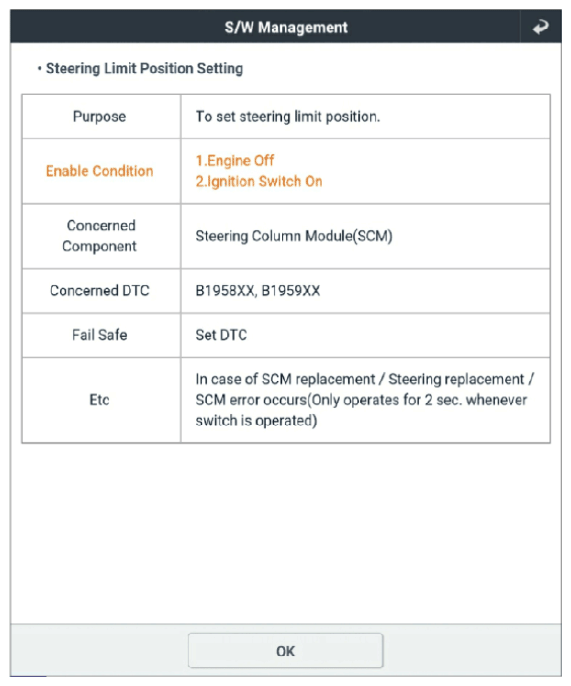

G14992602Courtesy of KIA MOTORS AMERICA, INC.

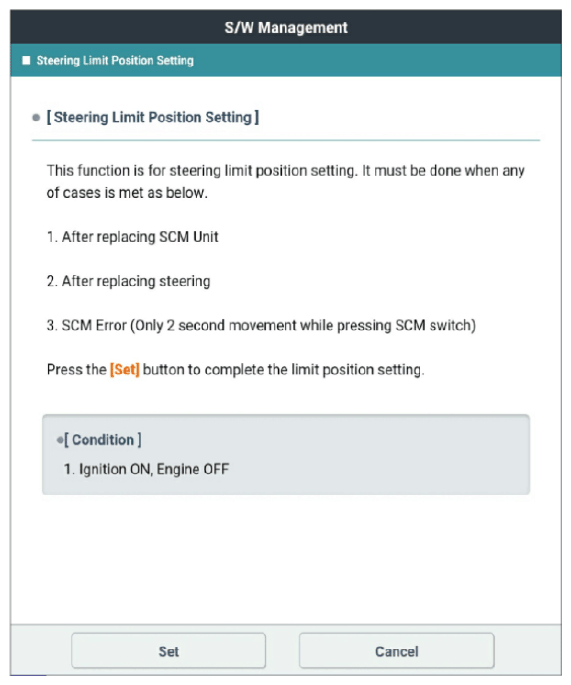

G14992603Courtesy of KIA MOTORS AMERICA, INC.

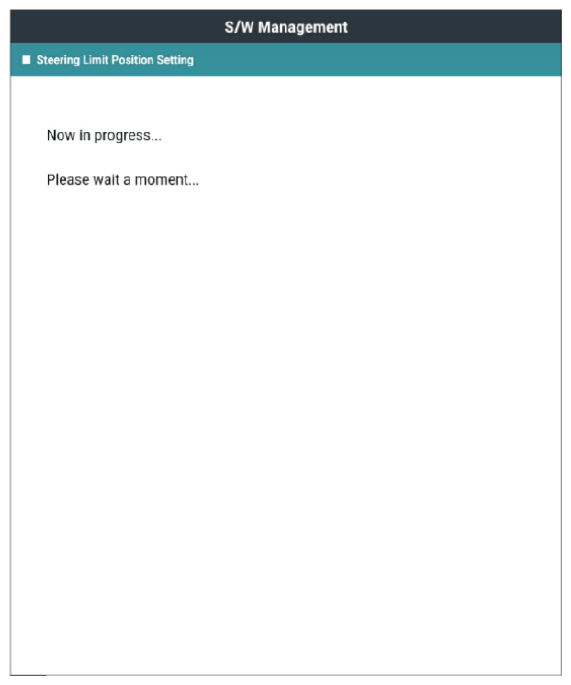

G14992604Courtesy of KIA MOTORS AMERICA, INC.

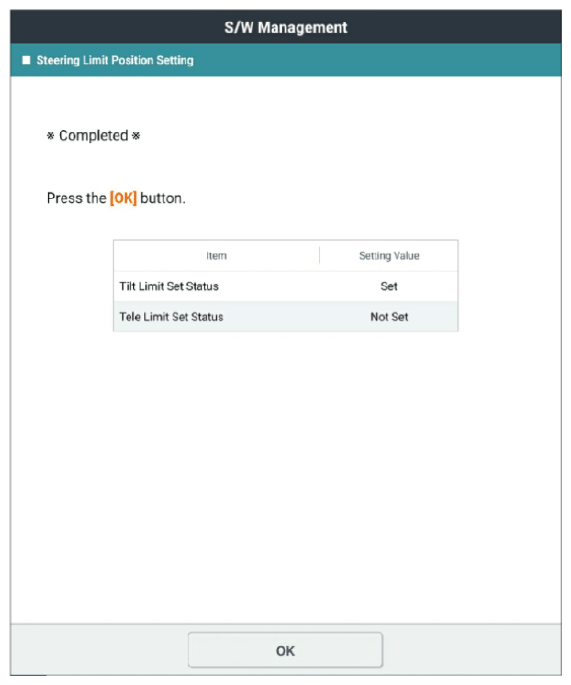

G14992605Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
