Schematic Diagrams

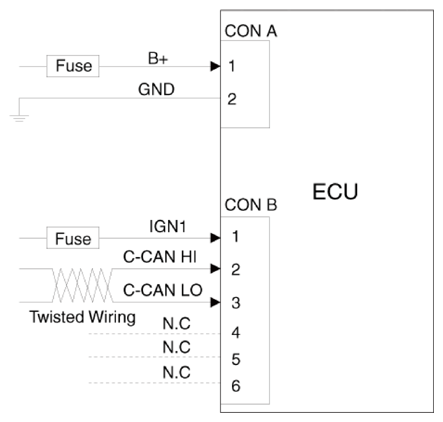

G14996801Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

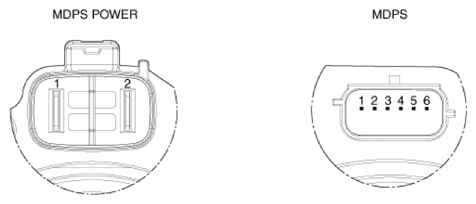

G14996802Courtesy of KIA MOTORS AMERICA, INC.
Item Pin Pin name
MDPS Power 1 Battery +
2 Battery -
MDPS Unit 1 Ignition
7 CAN High
8 CAN Low
