Repair Procedures: Removal

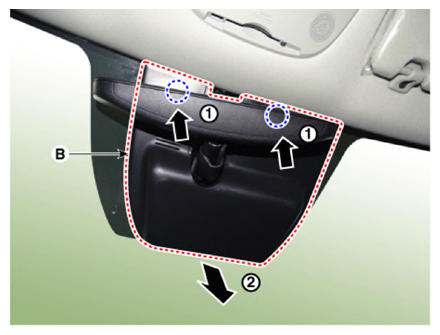

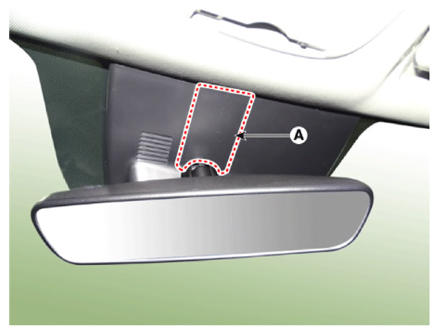

  1. Remove the multi sensor cover (A), (B).
    G14998036Courtesy of KIA MOTORS AMERICA, INC.
    G14998037Courtesy of KIA MOTORS AMERICA, INC.

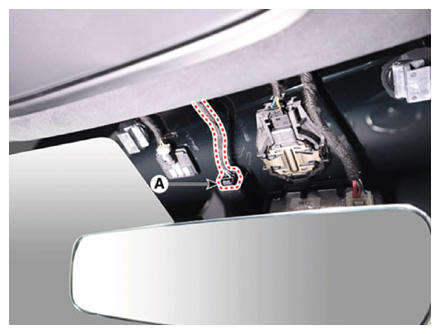

  2. Disconnect the inside rearview mirror connector (A).
    G14998038Courtesy of KIA MOTORS AMERICA, INC.

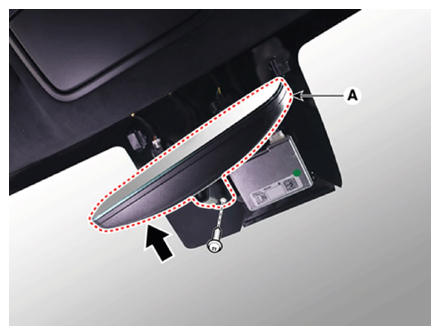

  3. Remove the inside rear view mirror (A) after removing the mounting screw.
    NOTE: Be careful not to damage the mounting bracket when removing the mirror.
G14998039Courtesy of KIA MOTORS AMERICA, INC.
