Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

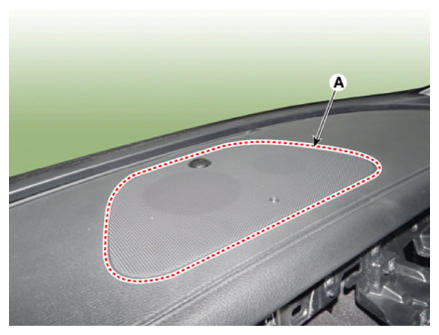

  2. Using a scraper or remover, remove the crash pad center speaker grille (A).
    G14997944Courtesy of KIA MOTORS AMERICA, INC.

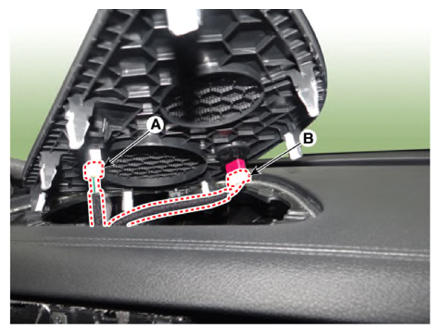

  3. Disconnect the security connector (A) and auto light & Photo sensor connector (B).
    G14997945Courtesy of KIA MOTORS AMERICA, INC.

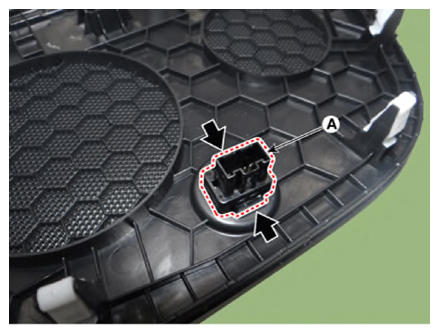

  4. Remove the auto light sensor (A) after releasing the fixed hooks.
G14997946Courtesy of KIA MOTORS AMERICA, INC.
