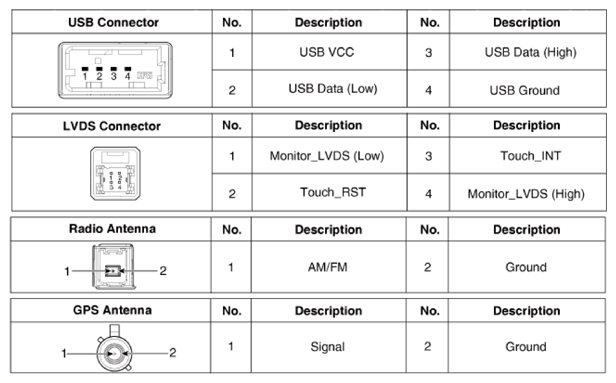

Connector Pin Information
| No. | Connector A | Connector B | Connector C | |
|---|---|---|---|---|
| Internal Amplifier | External Amplifier | |||
| 1 | Rear door left speaker (+) | - | - | Ground |
| 2 | Rear door left speaker (-) | - | MIC (+) | - |
| 3 | - | Amplifier navigation voice (+) | - | Hazard switch |
| 4 | - | Amplifier_SPDIF (High) | - | Seat belt reminder |
| 5 | - | - | Battery (+) | |
| 6 | Camera: Power | Illumination (+) | PAB Off | |
| 7 | Camera: Video | Multimedia-CAN (High) | IGN1 | |
| 8 | - | - | PAB On | |
| 9 | - | - | Rear left seat belt reminder | |
| 10 | - | Battery (+) | Rear center seat belt reminder | |
| 11 | USB_Detect | Battery (+) | Rear right seat belt reminder | |
| 12 | Steering wheel key | Ground | Hazard lamp | |
| 13 | Front door left speaker (+) | - | Ground | |
| 14 | Front door left speaker (-) | - | - | |
| 15 | Front door right speaker (-) | - | MIC1 (-) | |
| 16 | Front door right speaker (+) | - | RVM Camera: - SVM Camera: Ground | |
| 17 | - | Amplifier navigation voice (-) | - | |
| 18 | - | Amplifier SPDIF (Low) | - | |
| 19 | - | Amplifier SPDIF (Ground) | Illumination (-) | |
| 20 | Camera: Power ground | Multimedia-CAN (Low) | ||
| 21 | Camera: Video ground | - | ||
| 22 | - | ACC | ||
| 23 | - | - | ||
| 24 | - | Monitor battery (+) | ||
| 25 | - | - | ||
| 26 | Steering wheel key (Ground) | - | ||
| 27 | Rear door right speaker (-) | - | - | |
| 28 | Rear door right speaker (+) | - | - | |
| 29 | - | - | ||
| 30 | - | - | ||
| 31 | - | - | ||
| 32 | RVM Camera: - SVM Camera: Ground |
- | ||
| 33 | Camera: Shield ground | IGN1 | ||
| 34 | - | Ground | ||
| 35 | - | Monitor (ground) | ||
| 36 | - | |||
| 37 | - | |||
| 38 | Vehicle Speed | |||
