Repair Procedures: Installation

Install in the reverse order of removal.

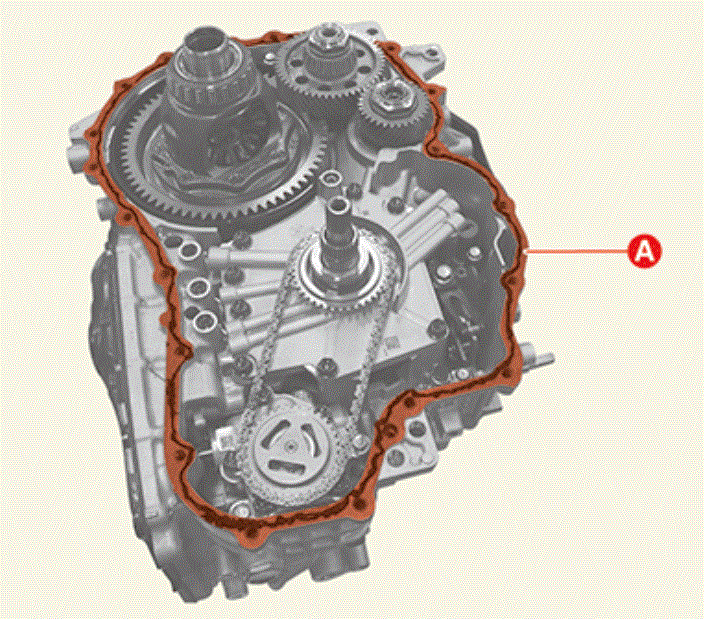

NOTE: Apply sealant on the IVT case side (A).

Standard sealant : LOCTITE FMD-5460/5480, THREE-BOND TB1281B/1216C

Bead diameter : 1.5 - 1.7 mm

Courtesy of KIA MOTORS AMERICA, INC.

Check the IVTF level after refilling the IVT with fluid.
(Refer to Transmission Gear Oil - "REPLACEMENT ")
