Connector And Terminal Function

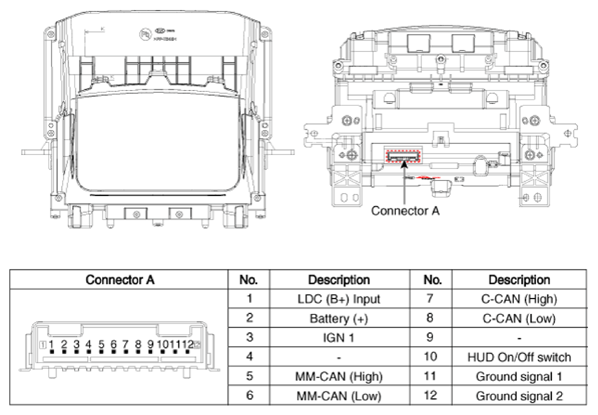

Fig 1: Head Up Display (HUD) Unit Connector End View And Terminal Description

G13282469

Courtesy of KIA MOTORS AMERICA, INC.
