Tailgate Open Switch

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the tailgate lower trim.

    (Refer to Body - " TAILGATE TRIM  ")

  3. Check for continuity between the terminals.

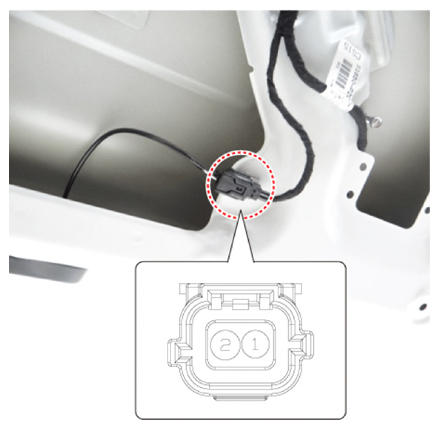

G13578754Courtesy of KIA MOTORS AMERICA, INC.

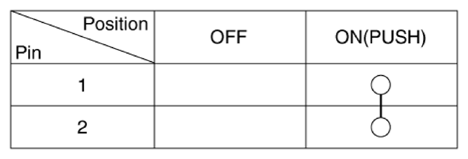

G13578755Courtesy of KIA MOTORS AMERICA, INC.
