Smart Key Status Check

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the VCI II to the Data Link Connector (DLC).
  2. After IG ON, select the "SMK STATUS INFO".

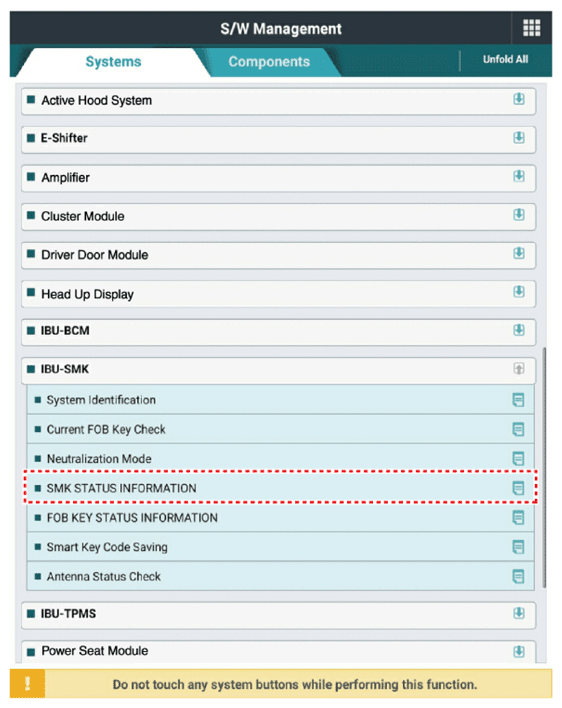

G13578786Courtesy of KIA MOTORS AMERICA, INC.

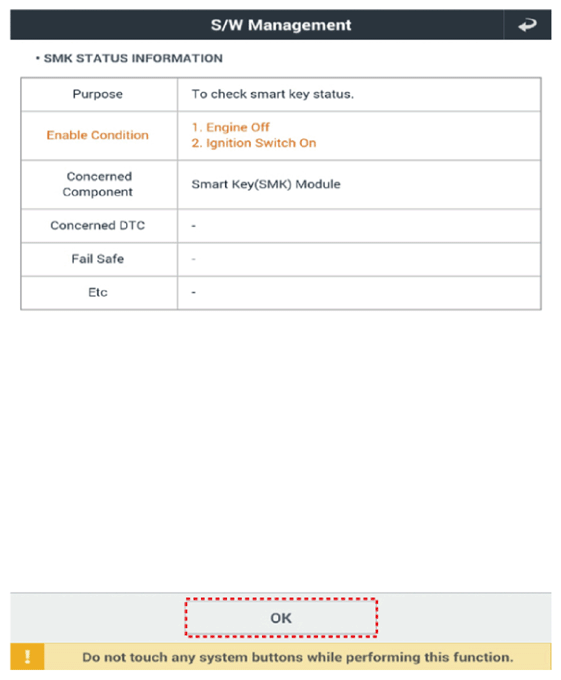

G13578787Courtesy of KIA MOTORS AMERICA, INC.

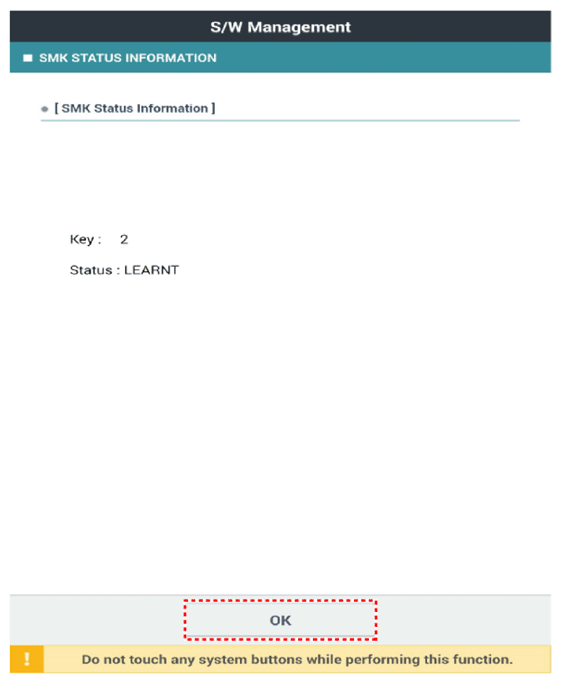

G13578788Courtesy of KIA MOTORS AMERICA, INC.
