Neutralization Status Check

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the VCI II to the Data Link Connector (DLC).
  2. After IG ON, select the "Neutralization mode".

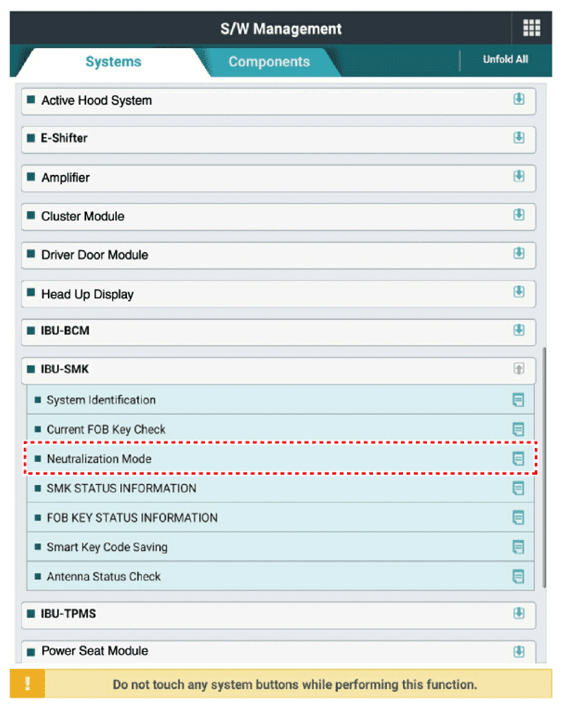

G13578789Courtesy of KIA MOTORS AMERICA, INC.
G13578790Courtesy of KIA MOTORS AMERICA, INC.

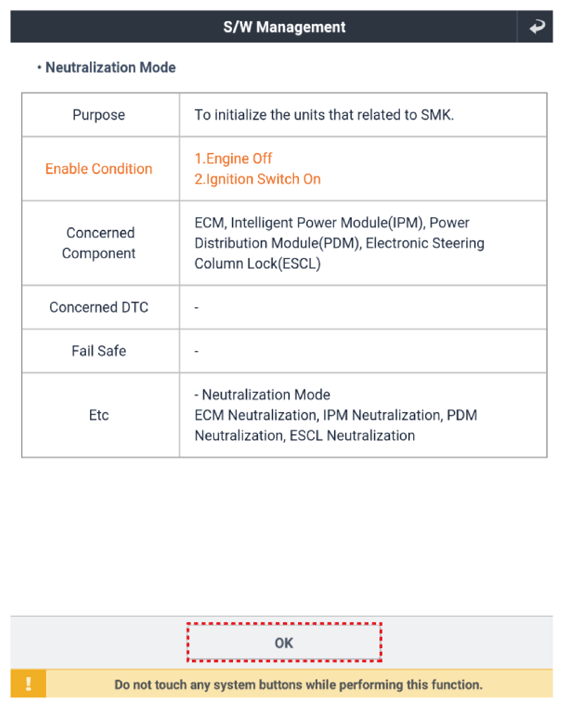

G13578791Courtesy of KIA MOTORS AMERICA, INC.

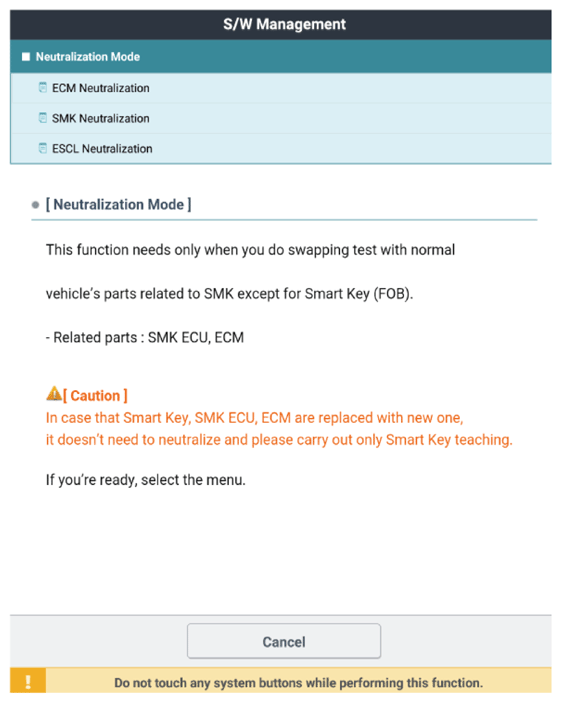

G13578792Courtesy of KIA MOTORS AMERICA, INC.

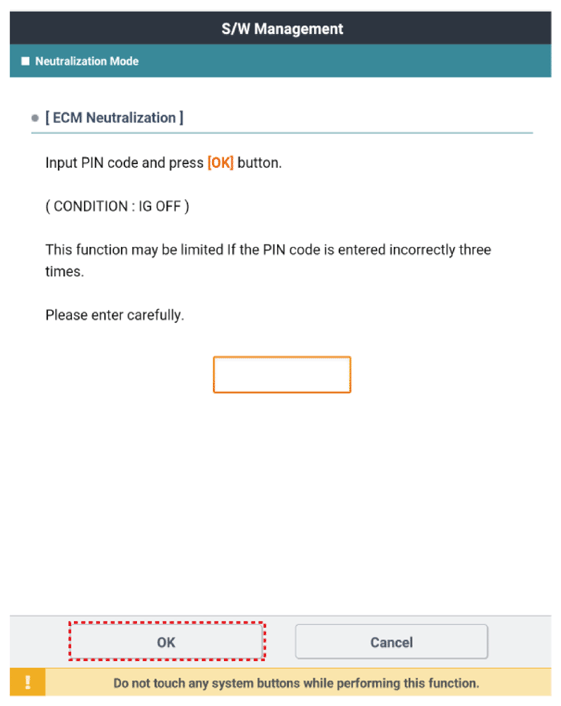

G13578793Courtesy of KIA MOTORS AMERICA, INC.

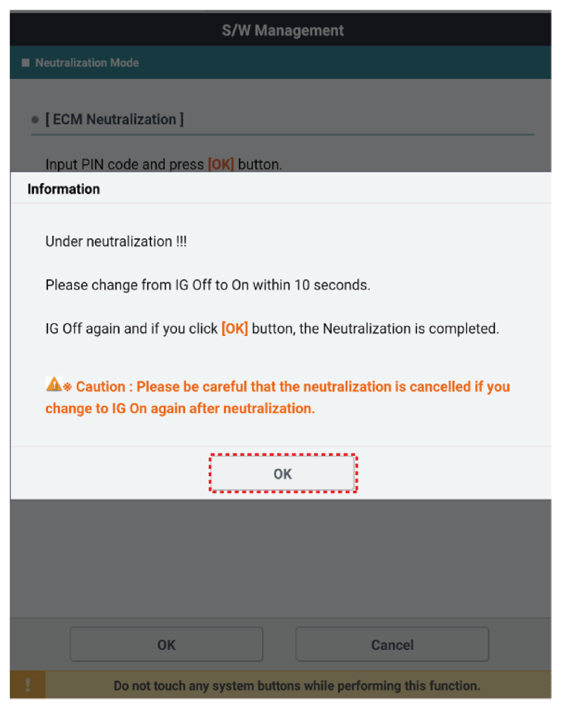

G13578794Courtesy of KIA MOTORS AMERICA, INC.
G13578795Courtesy of KIA MOTORS AMERICA, INC.

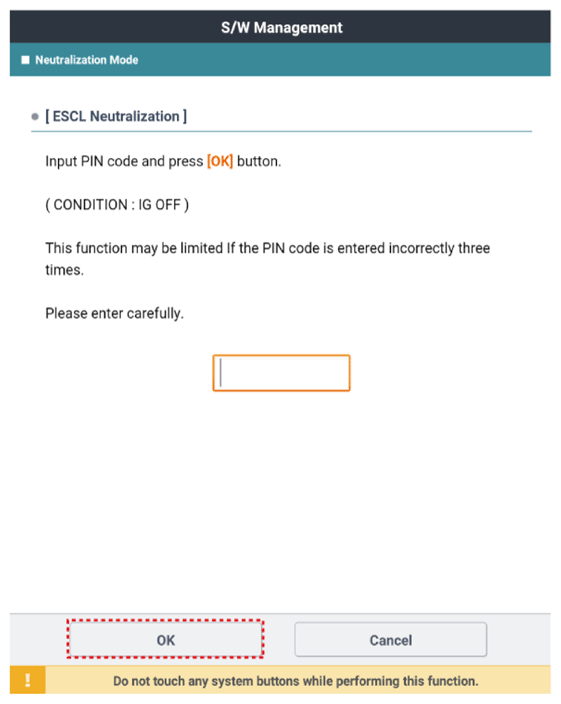

G13578796Courtesy of KIA MOTORS AMERICA, INC.

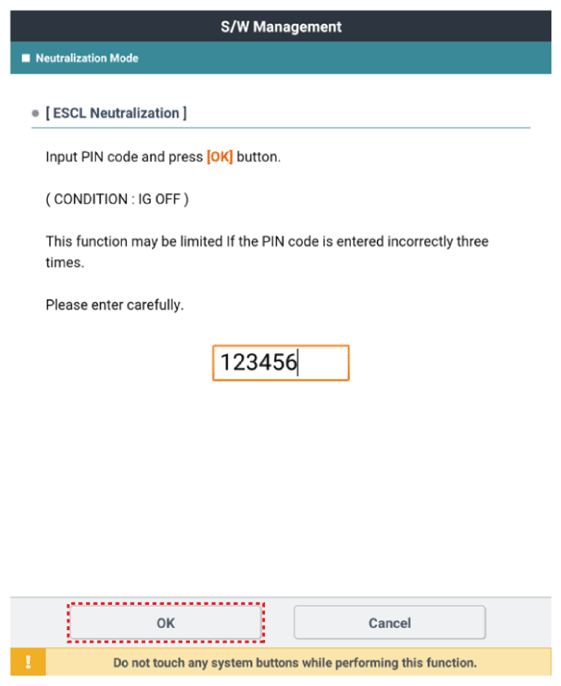

G13578797Courtesy of KIA MOTORS AMERICA, INC.

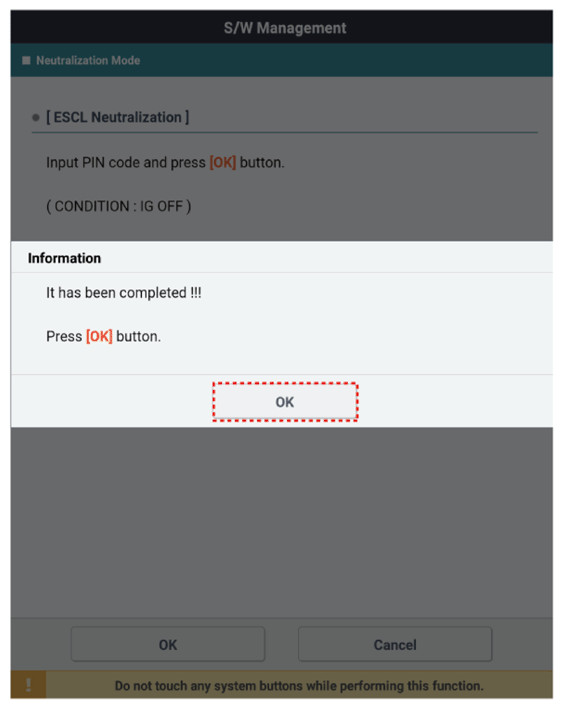

G13578798Courtesy of KIA MOTORS AMERICA, INC.

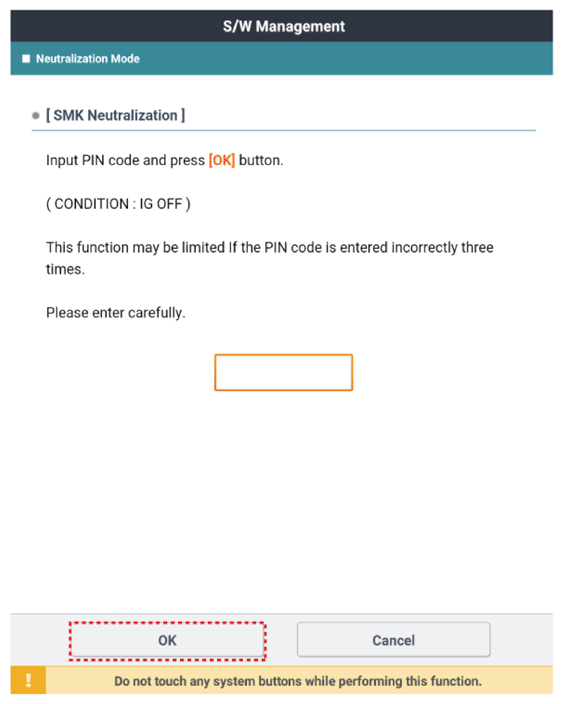

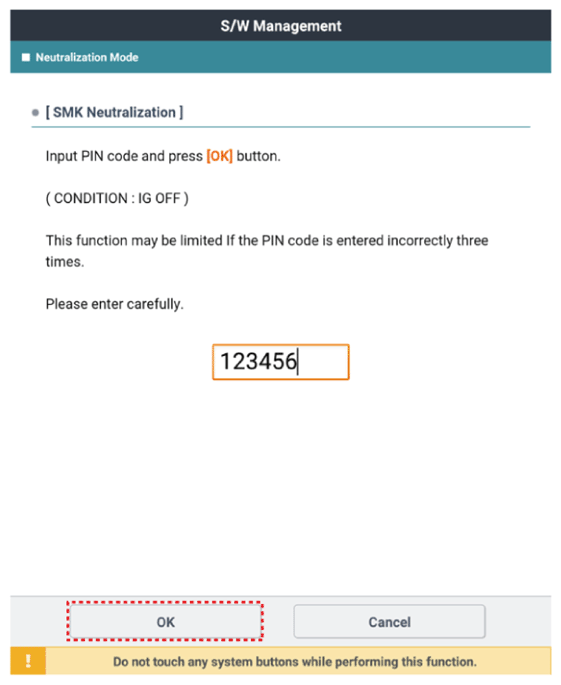

G13578799Courtesy of KIA MOTORS AMERICA, INC.

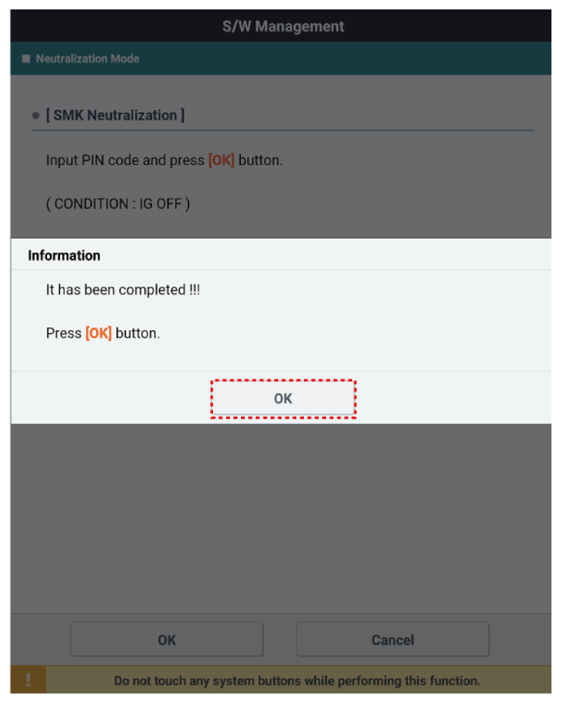

G13578800Courtesy of KIA MOTORS AMERICA, INC.
