Connector And Terminal Function

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

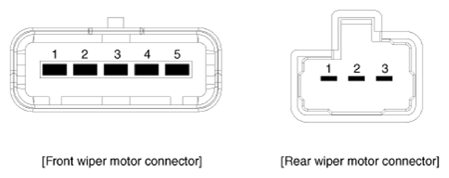

G13578812Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
Front wiper motor Rear wiper motor
1 High Low
2 Low Ground
3 Battery Parking
4 Parking
5 Ground
