Repair Procedures: Removal
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
- When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
- When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
NOTE:
- Do not damage or touch the silicone (coupling medium).
- Be careful so that the silicon is not contaminated by foreign substances, dust, etc..
- Use caution, as the silicon may be damaged if you try to separate the rain sensor using force
Information
- The dust or foreign substance on the rain sensor may have bad influence on the performance of the rain sensor. In order to ensure accurate function of the rain sensor, protect the sensor surface with the protection cover until the sensor is installed on the bracket.
- The coupling pad on the rain sensor surface is adhesive and the coupling pad may stick to the windshield during the use depending on the environment condition.
Therefore, it may be damaged when you try to remove the rain sensor from the windshield if using force. Use caution when separating it from the windshield.

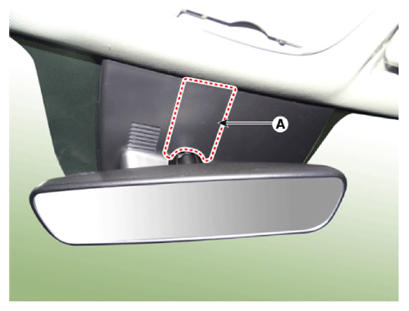

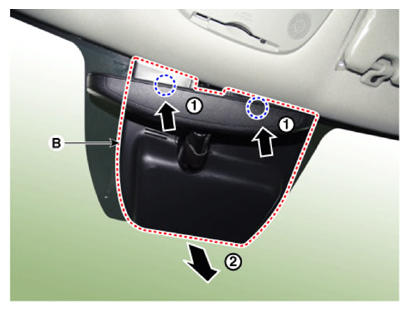

- Remove the multi sensor cover (A), (B) by using a flat-head screwdriver or remover.
- To remove the latch, pull aside the latch using the cover hole with a small flat-blade flat-head screwdriver.

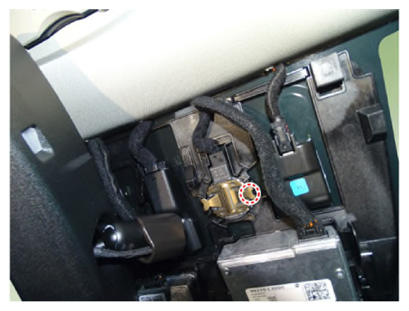

- Remove the rain sensor.

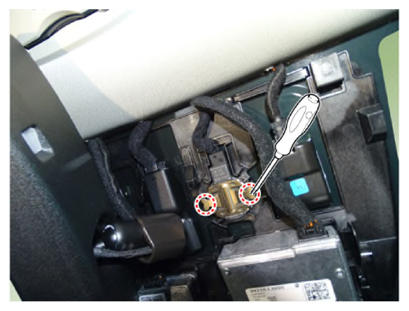

- Insert a small flat-head screwdriver (-) into a space at the bottom or top, between the rain sensor and bracket.
- Pull the rain sensor slowly up and down in the vertical direction of the glass, then disassemble the rain sensor slowly from windshield without damaging the silicone on the sensor.NOTE:
- Sensor may be damaged when you try to remove the rain sensor from the windshield using force. Use caution when separating it from the windshield.
- When detaching the silicone under a high temperature, it may be easily damaged because of the adhesive strength of the silicone. Remove the silicone in a cool environment.

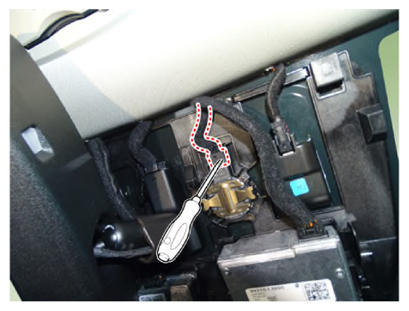

- Disconnect the wiring harness connector from the rain sensor by inserting a small flat-head screwdriver into the space.
