Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig. 1 to 5

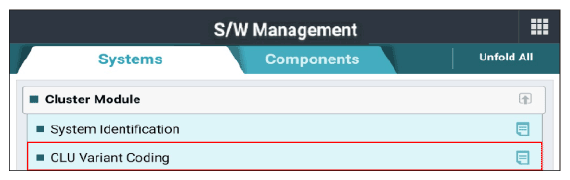

G13586081Courtesy of KIA MOTORS AMERICA, INC.

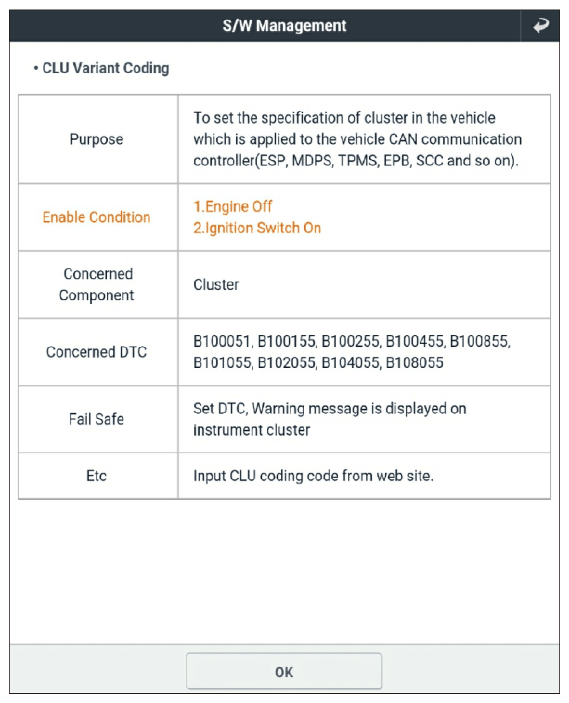

G13586082Courtesy of KIA MOTORS AMERICA, INC.

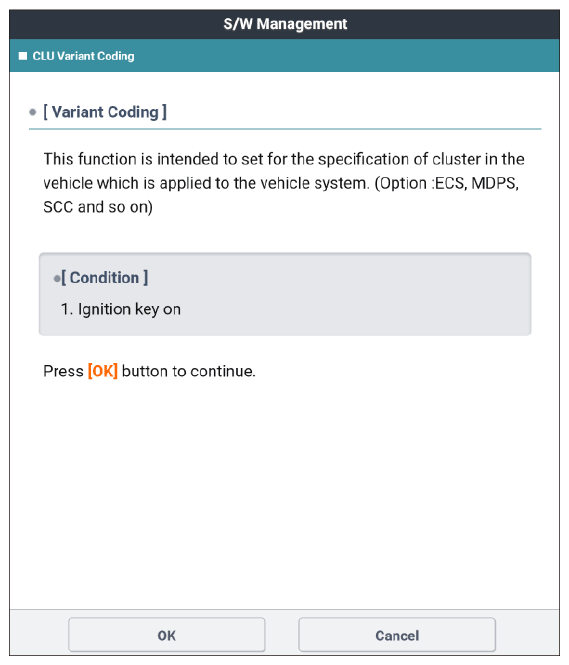

G13586083Courtesy of KIA MOTORS AMERICA, INC.

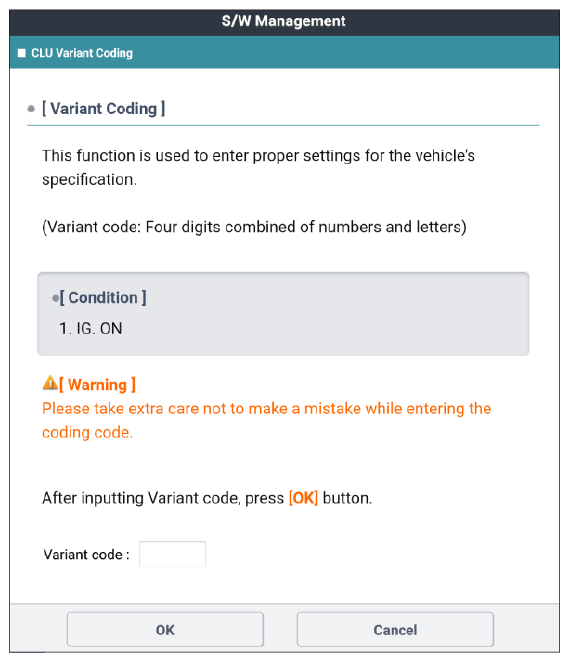

G13586084Courtesy of KIA MOTORS AMERICA, INC.

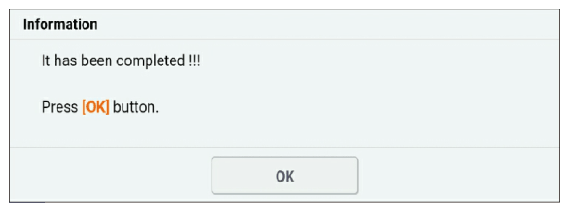

G13586085Courtesy of KIA MOTORS AMERICA, INC.
