Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig. 1 to 5

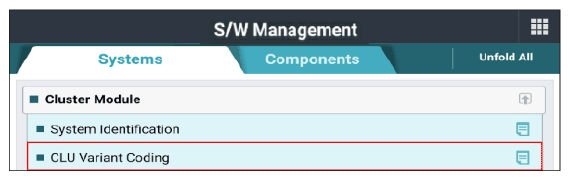

G13586063Courtesy of KIA MOTORS AMERICA, INC.

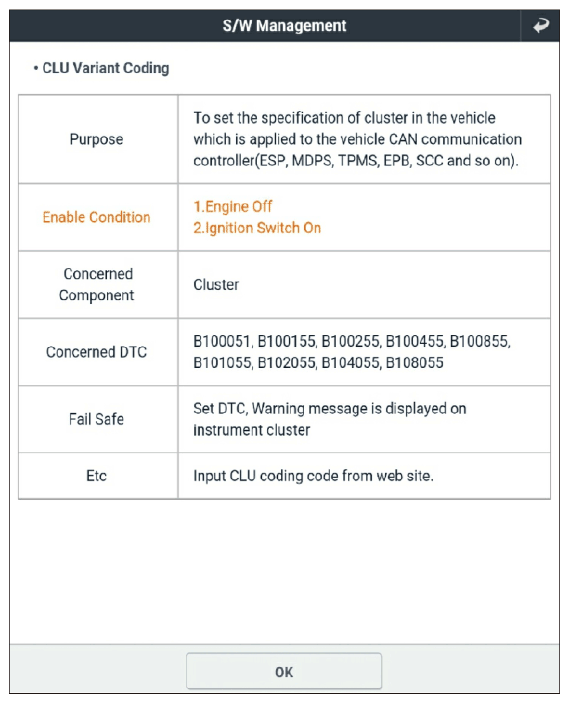

G13586064Courtesy of KIA MOTORS AMERICA, INC.

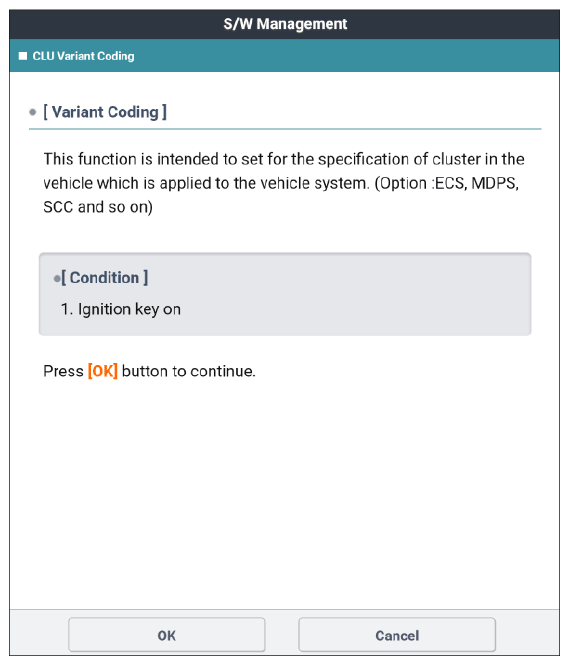

G13586065Courtesy of KIA MOTORS AMERICA, INC.

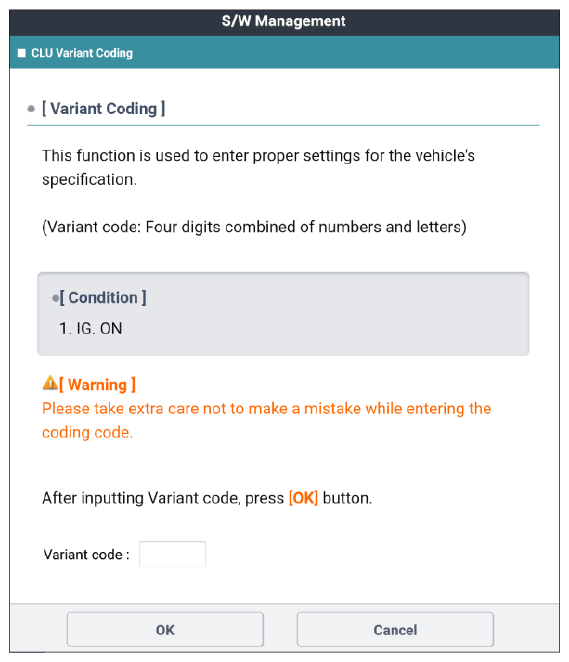

G13586066Courtesy of KIA MOTORS AMERICA, INC.

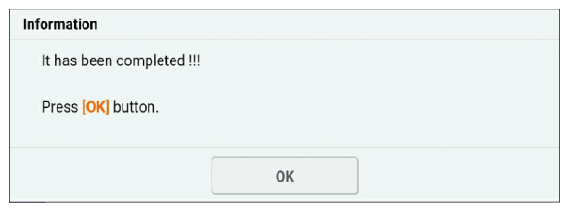

G13586067Courtesy of KIA MOTORS AMERICA, INC.
