Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig. 1 to 5

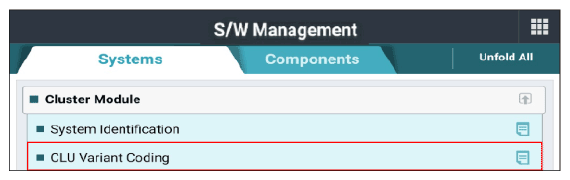

G13586019Courtesy of KIA MOTORS AMERICA, INC.

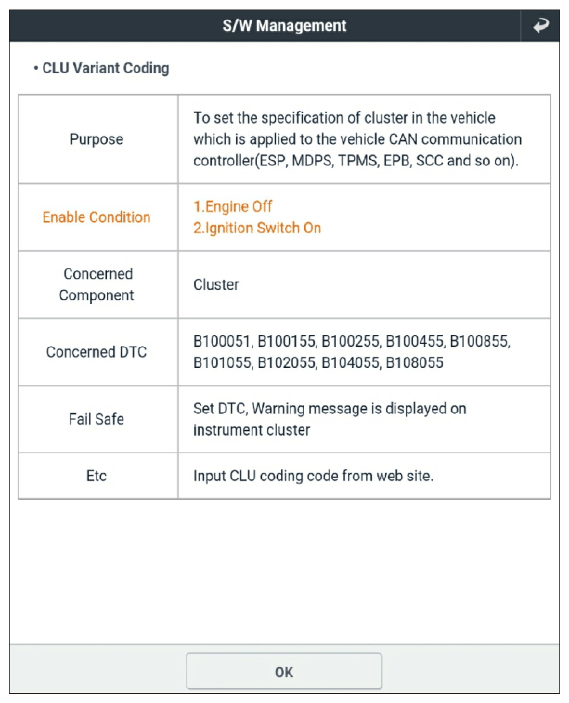

G13586020Courtesy of KIA MOTORS AMERICA, INC.

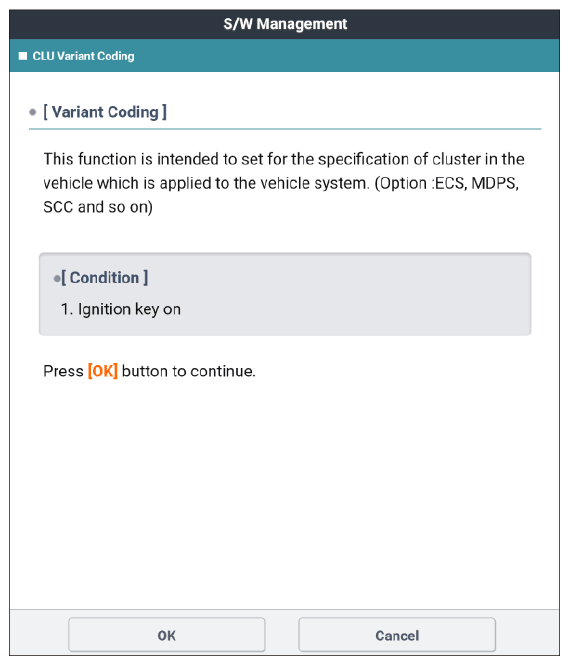

G13586021Courtesy of KIA MOTORS AMERICA, INC.

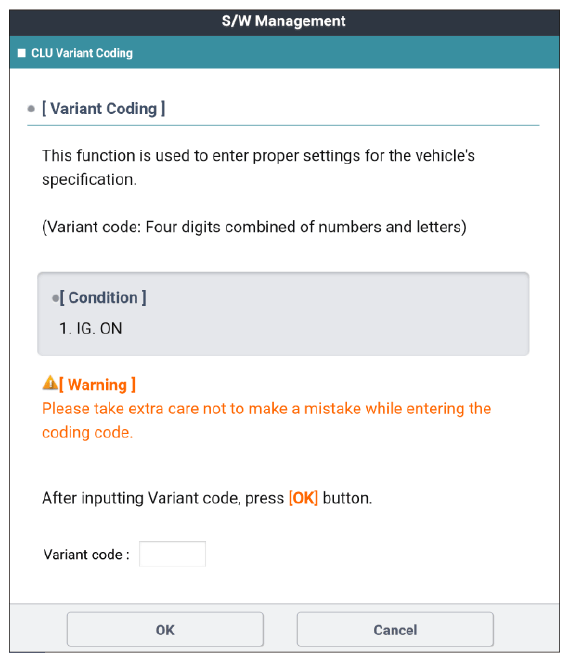

G13586022Courtesy of KIA MOTORS AMERICA, INC.

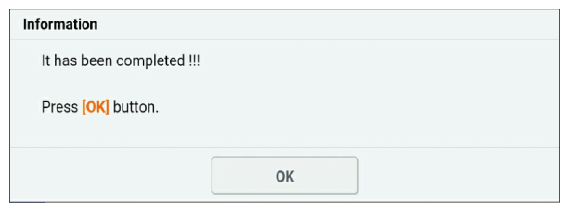

G13586023Courtesy of KIA MOTORS AMERICA, INC.
