Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.

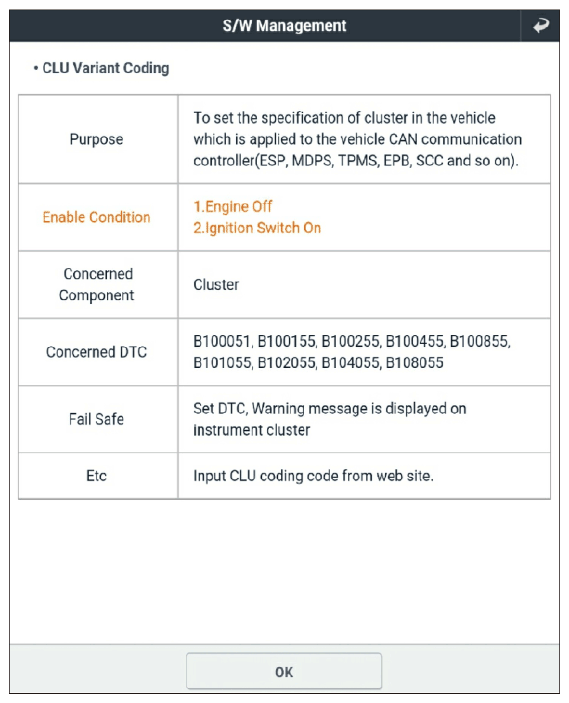

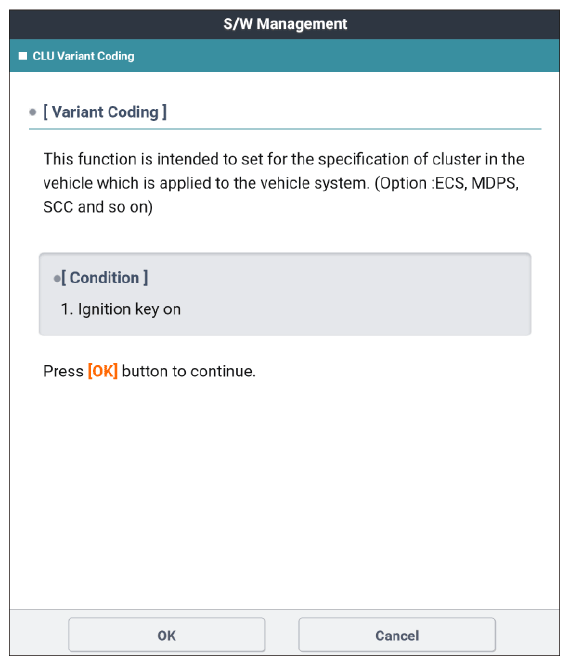

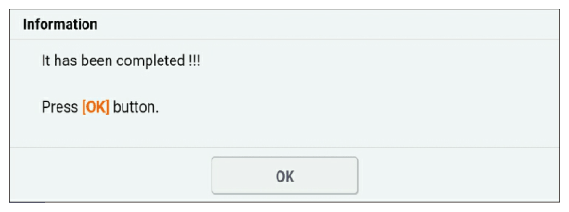

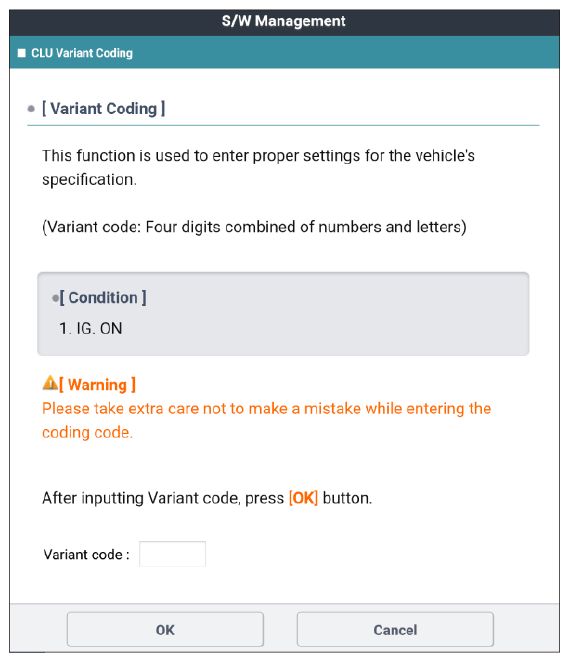

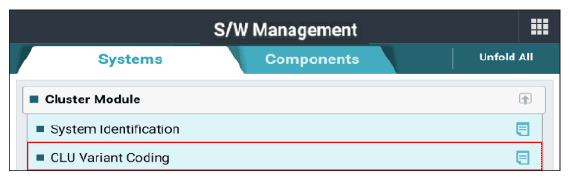

 Fig. 1 to 5
G13585997Courtesy of KIA MOTORS AMERICA, INC.
G13585998Courtesy of KIA MOTORS AMERICA, INC.
G13585999Courtesy of KIA MOTORS AMERICA, INC.
G13586000Courtesy of KIA MOTORS AMERICA, INC.
G13586001Courtesy of KIA MOTORS AMERICA, INC.
