Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig. 1 to 5

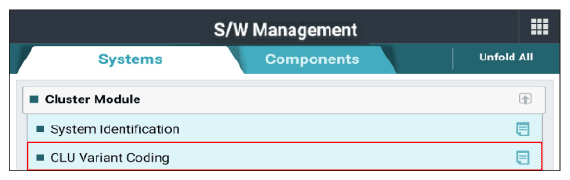

G13585975Courtesy of KIA MOTORS AMERICA, INC.

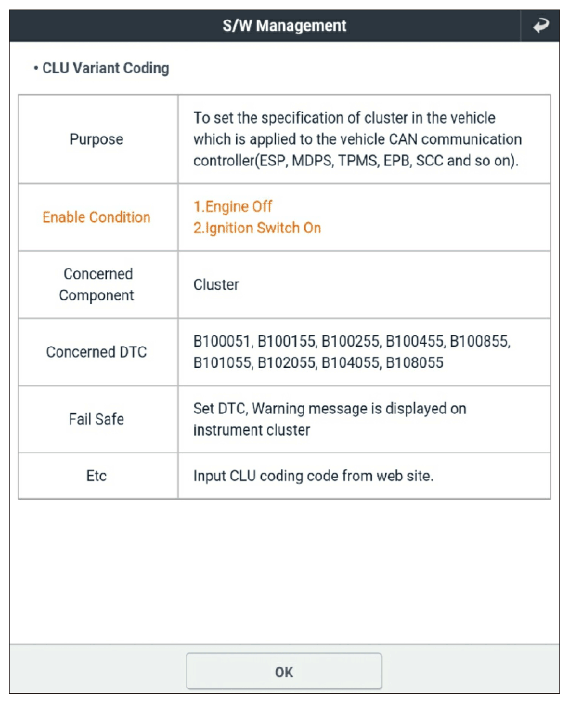

G13585976Courtesy of KIA MOTORS AMERICA, INC.

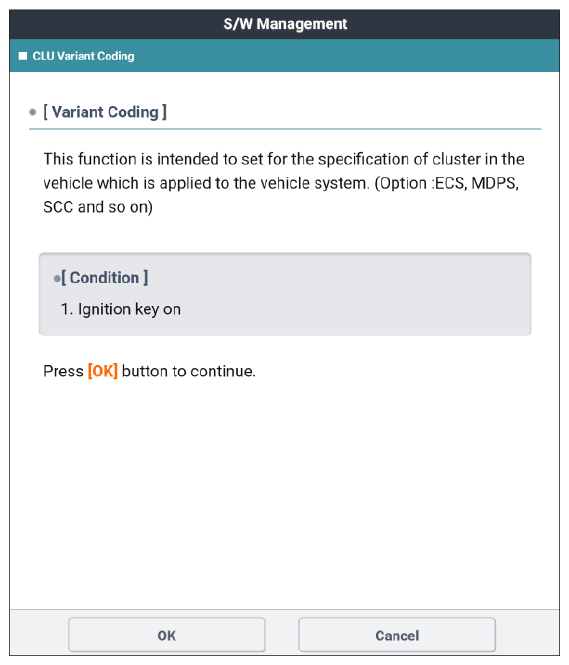

G13585977Courtesy of KIA MOTORS AMERICA, INC.

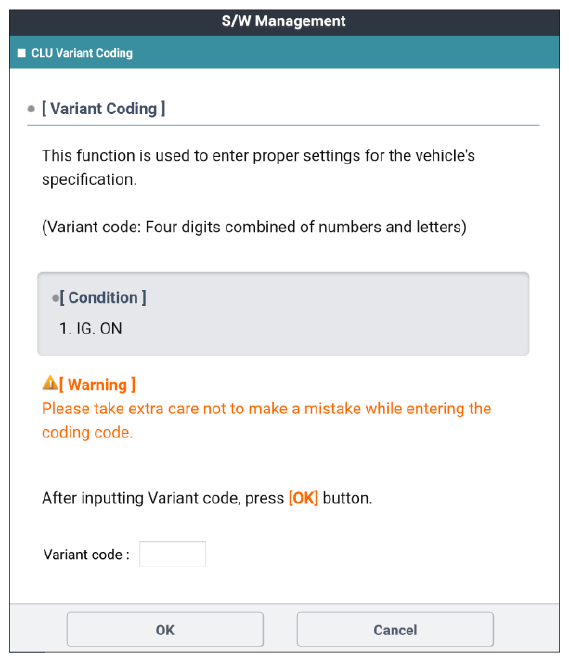

G13585978Courtesy of KIA MOTORS AMERICA, INC.

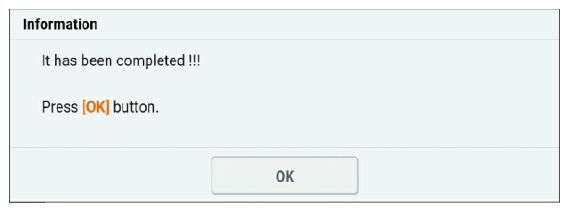

G13585979Courtesy of KIA MOTORS AMERICA, INC.
