Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig. 1 to 5

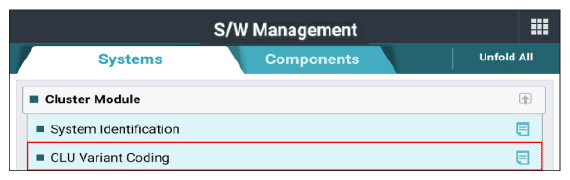

G13585953Courtesy of KIA MOTORS AMERICA, INC.

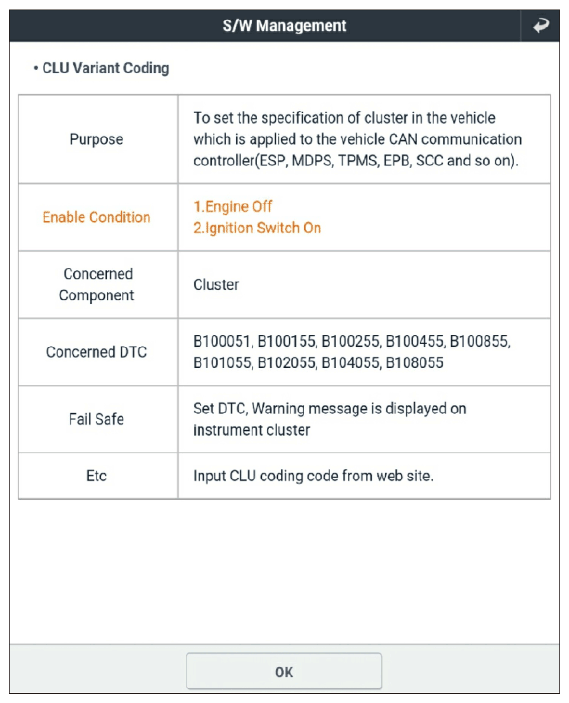

G13585954Courtesy of KIA MOTORS AMERICA, INC.

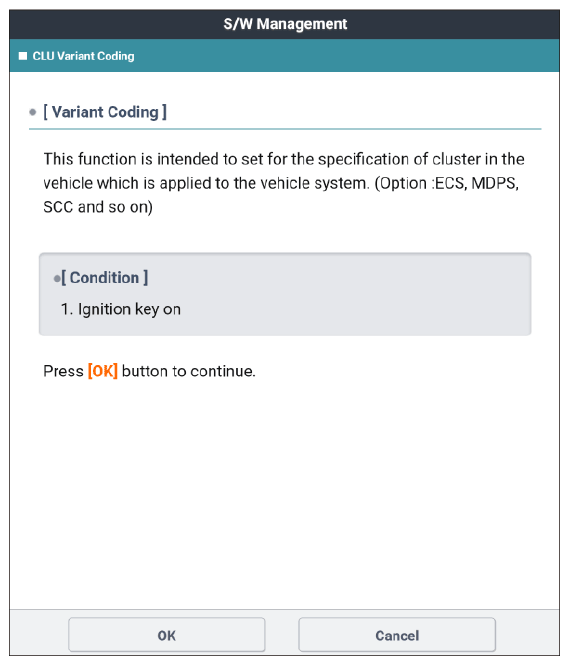

G13585955Courtesy of KIA MOTORS AMERICA, INC.

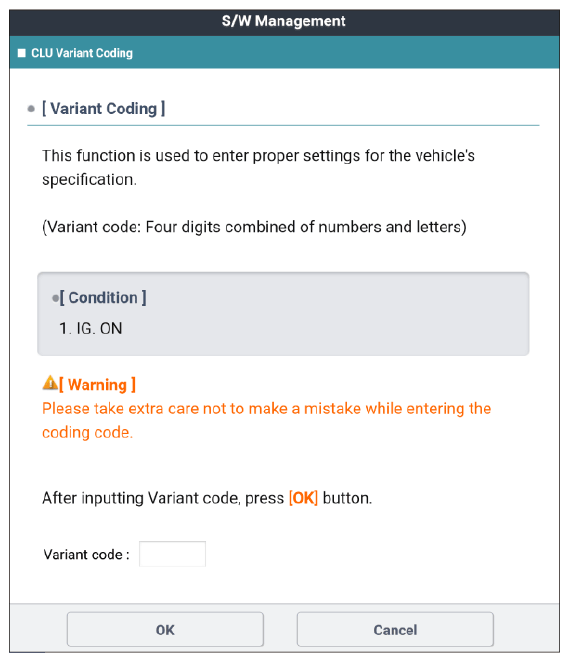

G13585956Courtesy of KIA MOTORS AMERICA, INC.

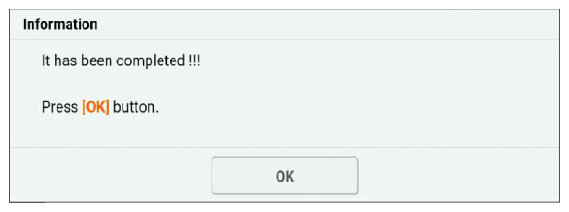

G13585957Courtesy of KIA MOTORS AMERICA, INC.
