Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.

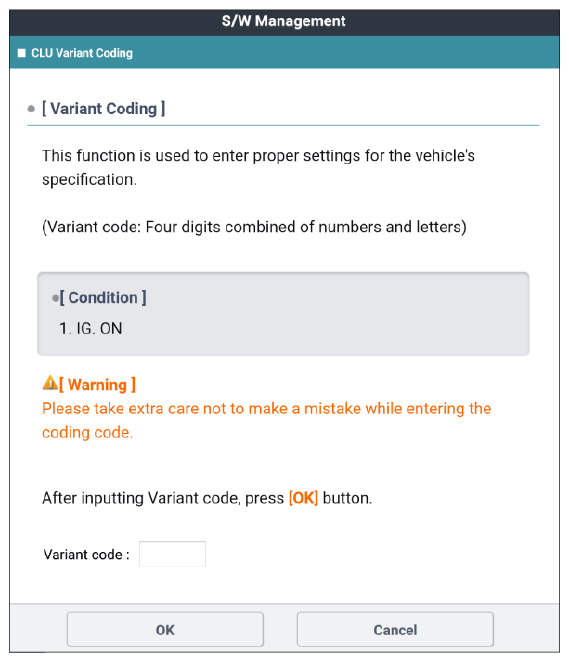

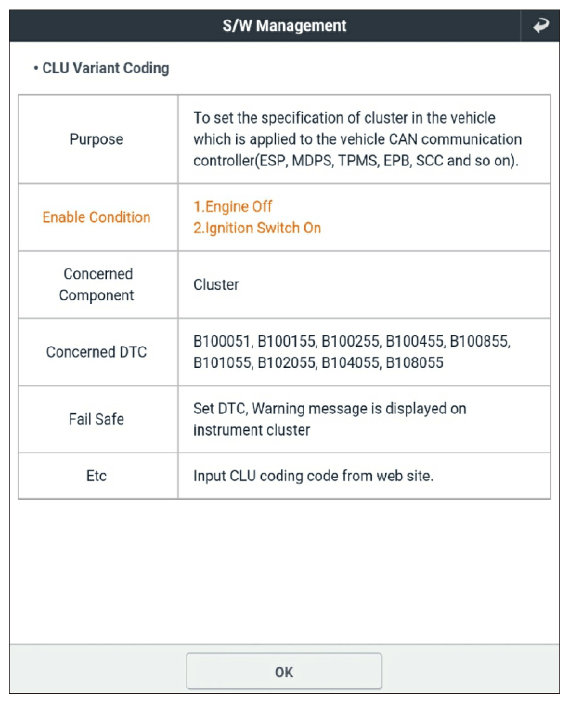

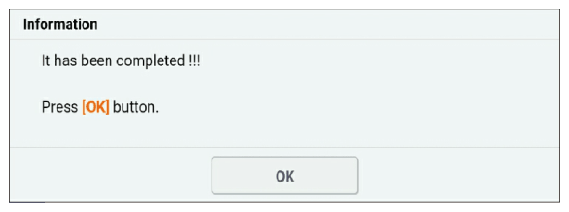

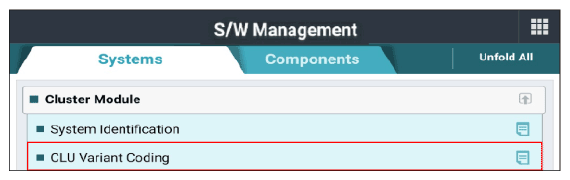

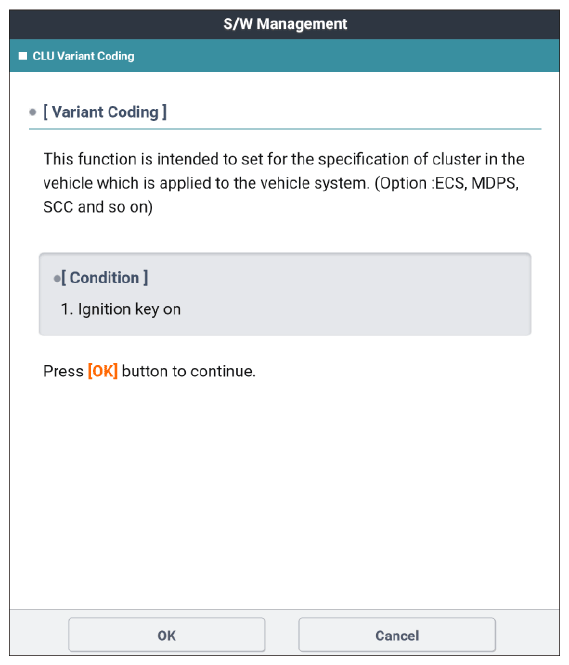

 Fig. 1 to 5
G13585931Courtesy of KIA MOTORS AMERICA, INC.
G13585932Courtesy of KIA MOTORS AMERICA, INC.
G13585933Courtesy of KIA MOTORS AMERICA, INC.
G13585934Courtesy of KIA MOTORS AMERICA, INC.
G13585935Courtesy of KIA MOTORS AMERICA, INC.
