Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig. 1 to 5

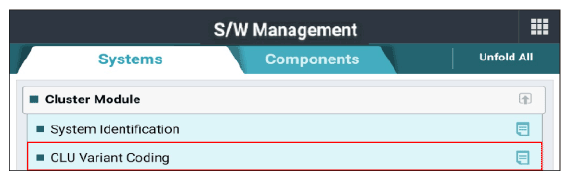

G13585909Courtesy of KIA MOTORS AMERICA, INC.

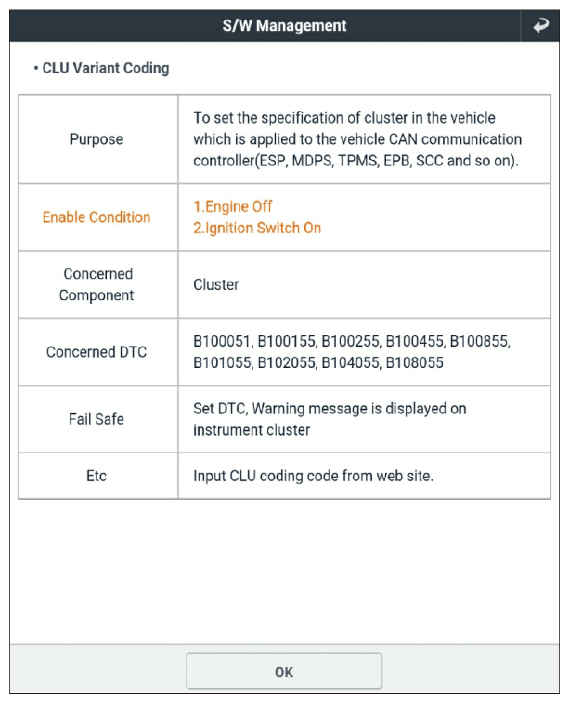

G13585910Courtesy of KIA MOTORS AMERICA, INC.

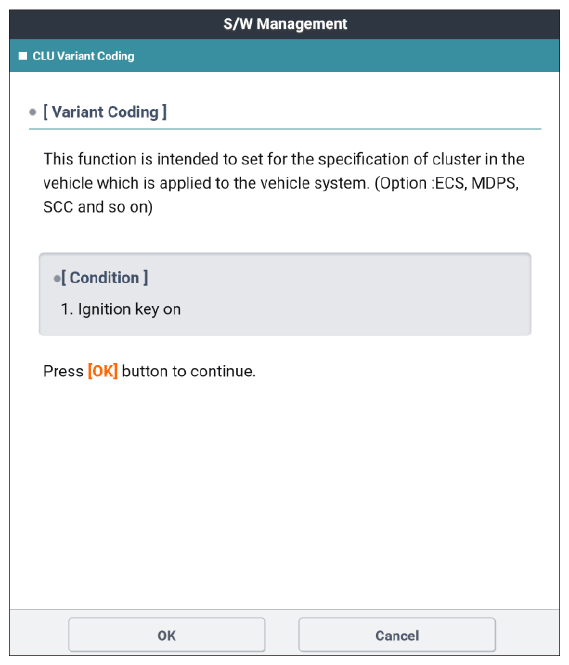

G13585911Courtesy of KIA MOTORS AMERICA, INC.

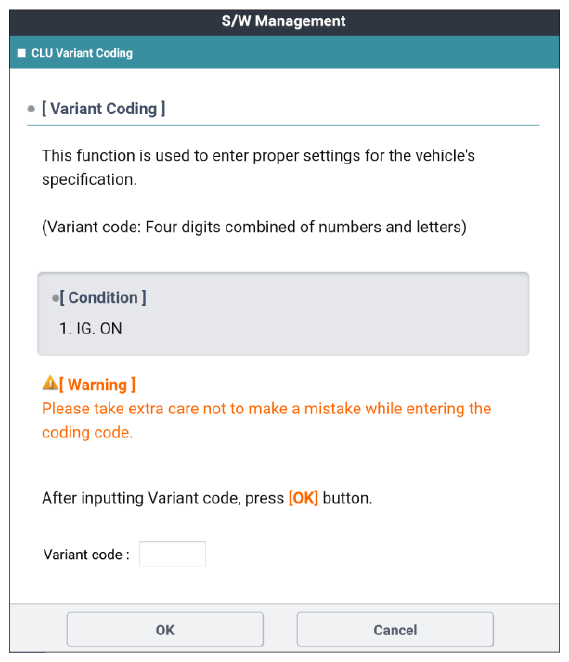

G13585912Courtesy of KIA MOTORS AMERICA, INC.

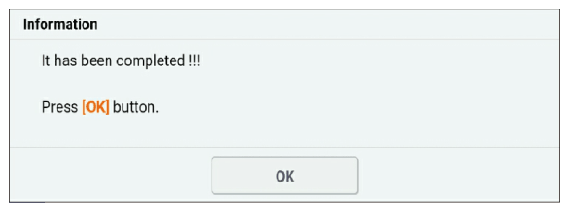

G13585913Courtesy of KIA MOTORS AMERICA, INC.
