Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig. 1 to 5

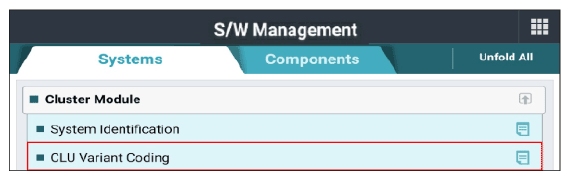

G13585891Courtesy of KIA MOTORS AMERICA, INC.

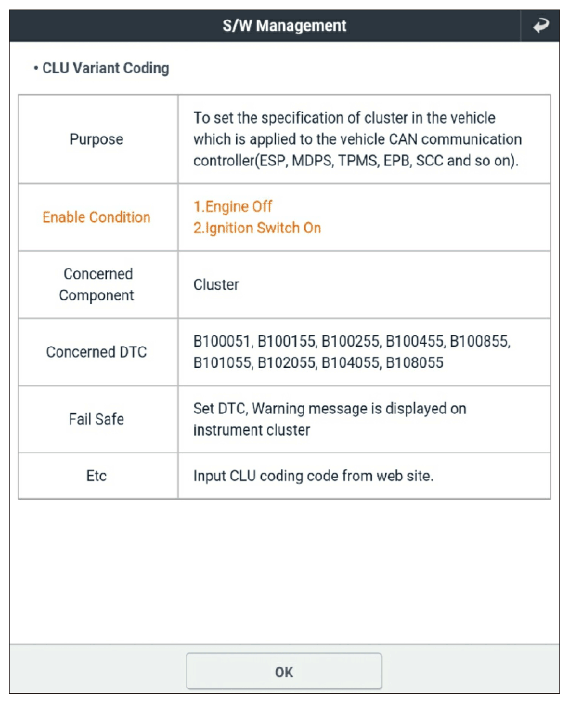

G13585892Courtesy of KIA MOTORS AMERICA, INC.

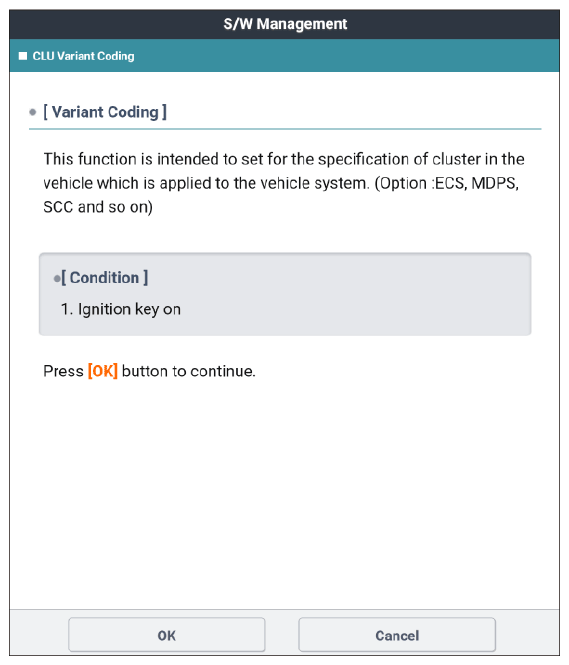

G13585893Courtesy of KIA MOTORS AMERICA, INC.

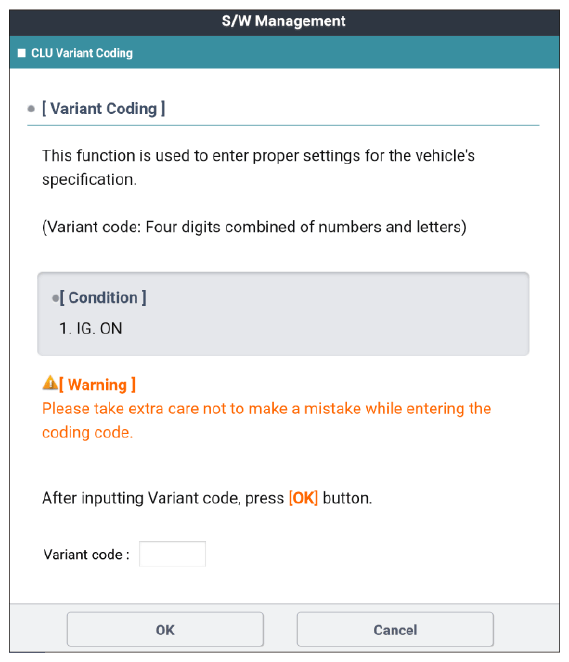

G13585894Courtesy of KIA MOTORS AMERICA, INC.

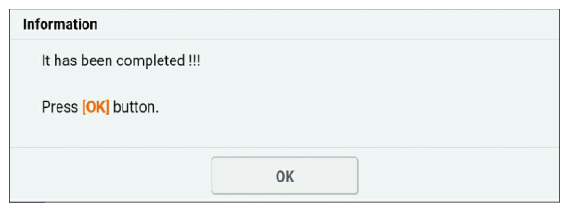

G13585895Courtesy of KIA MOTORS AMERICA, INC.
