Resolver Calibration

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

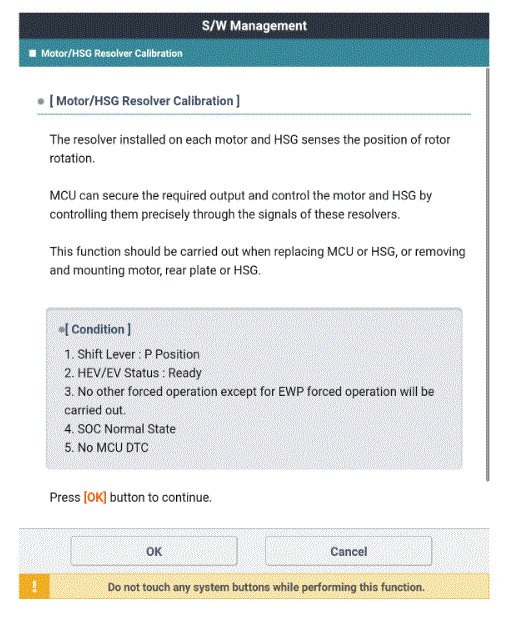

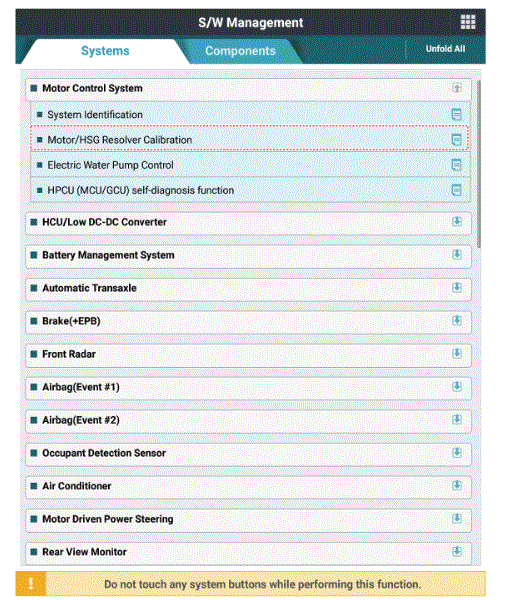

Perform the resolver calibration using the KDS after replacing or reinstalling the below components.

Hybrid Drive Motor installation
Hybrid Starter Generator (HSG) installation
Motor Control Unit (MCU) replacement
Hybrid Power Control Unit (HPCU) replacement

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
