Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:

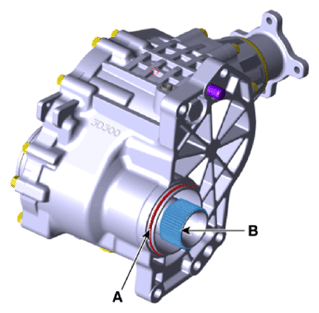

    • Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.
    • Smear and cover splines (B) with high apply the high pressure grease (2~5 g) to the spline (B).

      GREASE:  GREASE SLP-1 or equivalent

      G14957551Courtesy of KIA MOTORS AMERICA, INC.
    • Install the propeller shaft to be near runout marking each other.
    G14957552Courtesy of KIA MOTORS AMERICA, INC.
