Description & Operation: Description

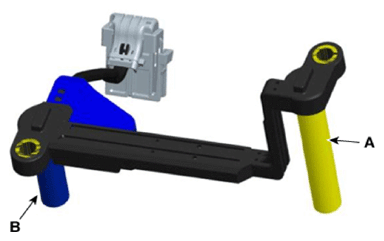

Input speed sensor (A) and output speed sensor (B) are integrated and installed in the transaxle.
- Speed sensor uses an electric current type hall sensor in which the current is changed by the magnetic variation.
- The sensor provides critical input data used in feedback control, engine clutch control, gear setting control, line pressure control, clutch activation pressure control, and sensor fault analysis.
