Repair Procedures: Disassembly

Remove the paddle shift switch mounting screw (A).

Courtesy of KIA MOTORS AMERICA, INC.

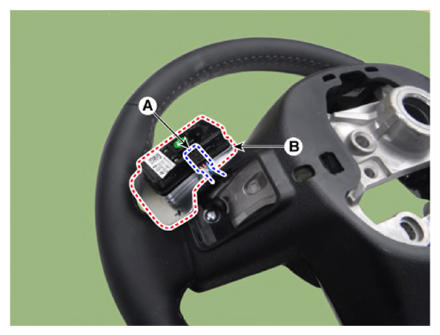

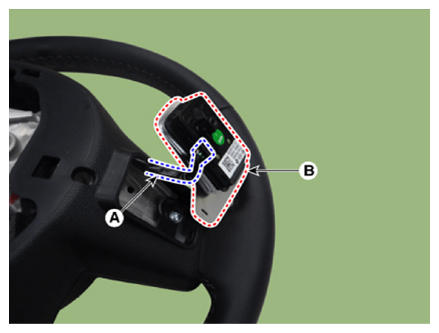

Remove paddle shift connector (A) and remove paddle shift (B).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

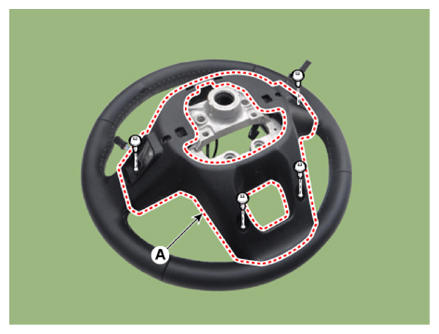

Remove the screw and remove the steering wheel lower cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

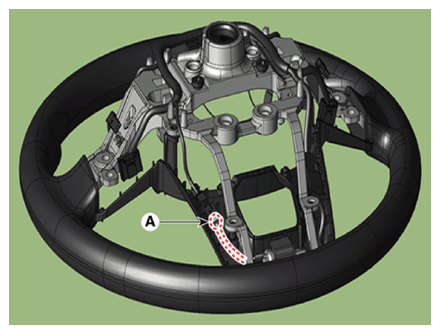

Disconnect the haptic motor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

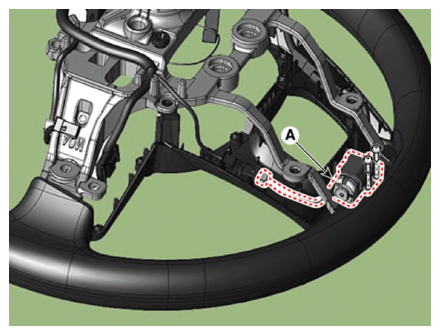

Remove the haptic motor mounting screw, then remove the haptic motor (A).
Tightening torque:

2.26 - 2.85 N.m (0.23 - 0.29 kgf.m, 1.67 - 2.10 lb.ft, 20.07 - 25.30 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

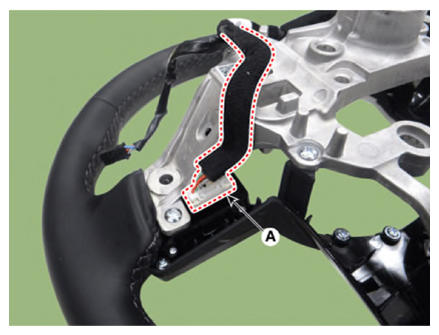

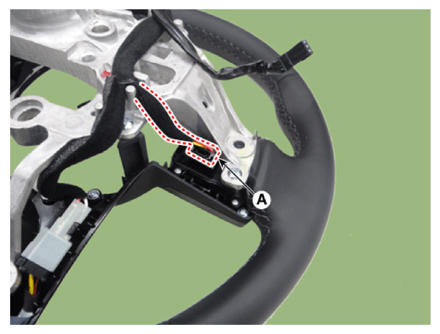

Disconnect the remote control switch connector (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

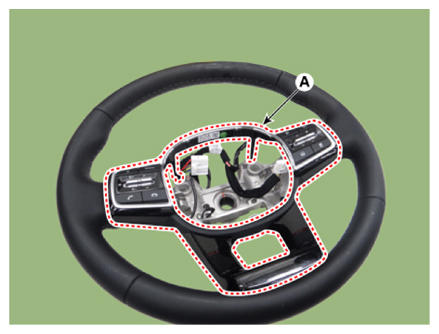

Remove the screw and remove the steering wheel bezel (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

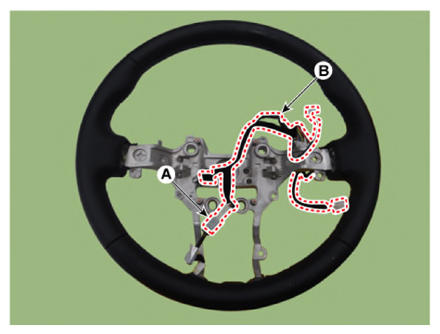

Disconnect the connector (A) and remove the steering extension wire (B).

Courtesy of KIA MOTORS AMERICA, INC.
